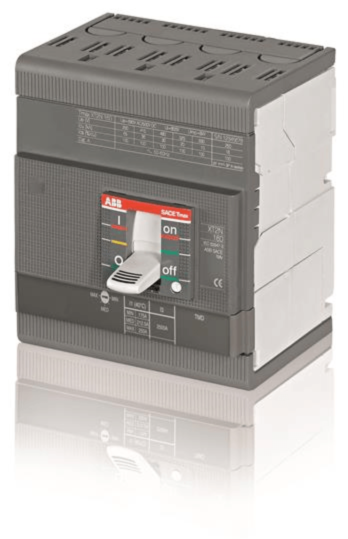

ABB XT2S 160 4 pole Standard MCCB Fixed Thermal/Adjustable Magnetic Release In=10A Ii=100A
MPN: 1SDA067569R1
Alt. SKU: XT2S 160 TMD 10-100 4p F F
Special Price
£454.15
£378.46
Regular Price
£698.70
Why Choose the Moulded Case Circuit Breaker [1SDA067569R1]
The TMAX XT2S 160 fixed four-pole circuit breaker features front-facing terminals for straightforward installation and maintenance. Equipped with a thermomagnetic release (TMD R) adjustable from 10 to 100 A, it offers precise overload and short-circuit protection. Designed for reliable performance in industrial and commercial electrical distribution systems, this breaker ensures compatibility with standard switchgear and enhances system safety and durability.
Technical Specification
- Function: Four-pole moulded case circuit breaker with thermomagnetic release.
- Rated Current: 10 A (adjustable setting range 7–10 A).
- Rated Voltage: 690 V AC, 500 V DC.
- Number of Poles: 4P fixed.
- Insulation Voltage: 1000 V.
- Rated Impulse Withstand Voltage: 8 kV.
- Terminal Type: Front bolt terminals, suitable for busbar 32.5–100 mm².
- Mechanical Durability: 25,000 operation cycles.
- Electrical Durability: 8,000 operation cycles at 120 cycles/hour.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated current of the C.BREAKER TMAX XT2S 160?
The rated current is 10 A, with an adjustable setting range of 7–10 A.
What is the maximum rated voltage for this circuit breaker?
The maximum rated voltage is 690 V AC and 500 V DC.
How many poles does the TMAX XT2S 160 have?
This circuit breaker has four poles (4P fixed).
What type of terminals does this circuit breaker use?
It features front bolt terminals, suitable for busbar sizes of 32.5–100 mm².
What is the mechanical durability of the TMAX XT2S 160?
The mechanical durability is rated for 25,000 operation cycles.
What is the electrical durability of this circuit breaker?
The electrical durability is 8,000 operation cycles at a rate of 120 cycles/hour.
What are the insulation and impulse withstand voltage ratings?
The insulation voltage is 1000 V, and the rated impulse withstand voltage is 8 kV.
| Manufacturer Part Number | 1SDA067569R1 |
|---|---|
| Barcode | 8015644014650 |
| Manufacturer | ABB |
| Number of Poles | 4 Pole |
| Amperage | 10A |
| Alternative Product SKU | XT2S 160 TMD 10-100 4p F F |
| Product Lead Time | Please contact us for a delivery time |
