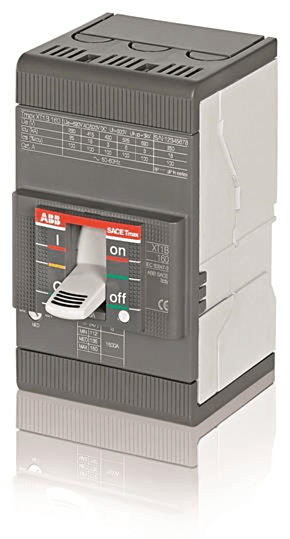

ABB XT1H 160 3 pole High MCCB Fixed Thermal/Adjustable Magnetic Release In=160A Ii=1600A
MPN: 1SDA067454R1
Alt. SKU: XT1H 160 TMD 160-1600 3p F F
Special Price
£441.47
£367.89
Regular Price
£679.18
Why Choose the Moulded Case Circuit Breaker [1SDA067454R1]
The TMAX XT1H 160 fixed three-pole circuit breaker features front-facing terminals and a thermomagnetic release, offering reliable protection for electrical installations. Designed for current ratings from 160 to 1600 A, this breaker ensures precise overload and short-circuit trip characteristics. Its robust construction and compatibility with standard switchgear make it suitable for a wide range of industrial and commercial applications.
Technical Specification
- Function: Fixed three-pole moulded case circuit breaker with thermomagnetic release TMD.
- Rated Current (Iₙ): 160 A.
- Rated Operational Voltage: 690 V AC / 500 V DC.
- Number of Poles: 3 poles.
- Rated Insulation Voltage (Uᵢ): 800 V.
- Rated Impulse Withstand Voltage (Uᵢₘₚ): 8 kV.
- Short-Circuit Breaking Capacity (Iₛ): Up to 100 kA AC and 70 kA DC (3 poles in series).
- Terminal Type: Front-mounted bolt terminals.
- Connecting Capacity: Busbar 45.5 to 80 mm².
- Mechanical Durability: 25,000 cycles.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated current of the C.BREAKER TMAX XT1H?
The rated current is 160 A.
What is the maximum operational voltage for this circuit breaker?
The rated operational voltage is 690 V AC and 500 V DC.
How many poles does the TMAX XT1H circuit breaker have?
It has 3 poles.
What is the short-circuit breaking capacity of this breaker?
The short-circuit breaking capacity is up to 100 kA AC and 70 kA DC.
What type of terminals does the TMAX XT1H feature?
It features front-mounted bolt terminals.
What is the connecting capacity for busbars?
The connecting capacity for busbars is 45.5 to 80 mm².
What is the mechanical durability of the circuit breaker?
The mechanical durability is rated for 25,000 cycles.
| Manufacturer Part Number | 1SDA067454R1 |
|---|---|
| Barcode | 8015644013486 |
| Manufacturer | ABB |
| Number of Poles | 3 Pole |
| Amperage | 160A |
| Alternative Product SKU | XT1H 160 TMD 160-1600 3p F F |
| Product Lead Time | Please contact us for a delivery time |
