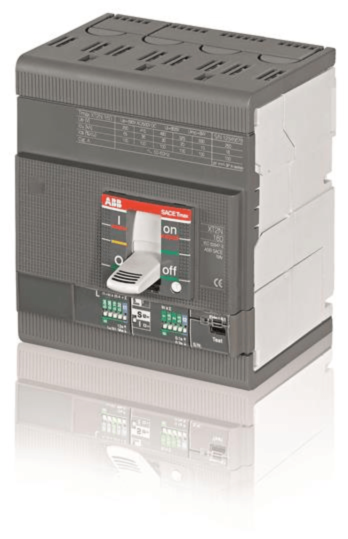

ABB XT2N 160 4 pole Normal MCCB Electronic trip unit I Ii=160A
MPN: 1SDA067101R1
Alt. SKU: XT2N 160 Ekip I In=160A 4p F F InN=100%
Special Price
£736.42
£613.68
Regular Price
£1,132.96
Why Choose the Moulded Case Circuit Breaker [1SDA067101R1]
The TMAX XT2N 160A four-pole fixed circuit breaker features front terminals and a solid-state release for precise protection in AC applications. It includes a fully rated neutral pole, ensuring reliable performance and compliance with current standards. Designed for seamless integration with EKIP-I R electronic trip units, this breaker offers enhanced control and monitoring capabilities, making it suitable for demanding industrial and commercial electrical installations.
Technical Specification
- Function: 4-pole moulded case circuit breaker with solid-state release.
- Rated Current: 160 A.
- Rated Voltage: 690 V AC operational voltage.
- Insulation Voltage (Ui): 1000 V.
- Impulse Withstand Voltage (Uimp): 8 kV.
- Short-Circuit Breaking Capacity (Ics and Icu): Up to 65 kA at 220-240 V AC, decreasing to 10 kA at 690 V AC.
- Terminal Type and Size: Front bolt terminals, busbar connection 32.5 to 100 mm².
- Mechanical Durability: 25,000 operational cycles.
- Electrical Durability: 8,000 operational cycles at 120 cycles per hour.
- Tightening Torque: 6 N·m recommended for terminals.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated current of the C.BREAKER TMAX XT2N 160?
The rated current is 160 A.
What is the maximum short-circuit breaking capacity?
The maximum short-circuit breaking capacity is up to 65 kA at 220-240 V AC, decreasing to 10 kA at 690 V AC.
What type of terminals does this circuit breaker have?
This circuit breaker features front bolt terminals with a busbar connection size of 32.5 to 100 mm².
What is the mechanical durability of the circuit breaker?
The mechanical durability is rated for 25,000 operational cycles.
What is the recommended tightening torque for the terminals?
The recommended tightening torque for the terminals is 6 N·m.
What is the insulation voltage of the C.BREAKER TMAX XT2N 160?
The insulation voltage (Ui) is 1000 V.
What standards and approvals does this product conform to?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 1SDA067101R1 |
|---|---|
| Barcode | 8015644010065 |
| HS Code | 85362090 |
| Country of Manufacture | Italy |
| Manufacturer | ABB |
| Number of Poles | 4 Pole |
| Amperage | 160A |
| Alternative Product SKU | XT2N 160 Ekip I In=160A 4p F F InN=100% |
