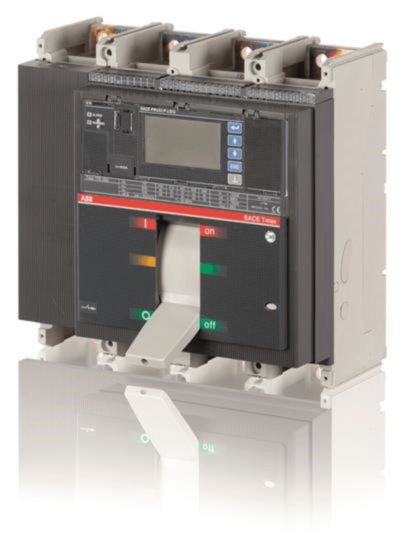

1sda064786r1 t7s 1000 ul pr332/p lsi in=1000a 4 pole abb mccb
MPN: 1SDA064786R1
Alt. SKU: T7S 1000 UL PR332/P LSI In1000A 4p FF M
Why Choose the Moulded Case Circuit Breaker [1SDA064786R1]
The TMAX T7S 1000 fixed four-pole circuit breaker features front terminals for straightforward installation and maintenance. It incorporates a stored energy operating mechanism for reliable switching performance and a solid-state release unit, ensuring precise protection in AC applications. Certified to UL and CSA standards, this breaker model PR332/P-LSI R 1000 is engineered for robust, consistent operation in demanding electrical distribution systems.
Technical Specification
- Function: Moulded Case Circuit Breaker, fixed four-pole with front terminals.
- Rated Current (In): 1000 A.
- Rated Operational Voltage: 600 V AC.
- Number of Poles: 4P (four-pole).
- Rated Insulation Voltage (Ui): 1000 V.
- Rated Impulse Withstand Voltage (Uimp): 8 kV.
- Short-Circuit Interrupting Rating (UL489): 65 kA at 240 V AC, 50 kA at 480 V AC, 25 kA at 600 V AC.
- Mechanical Durability: 10,000 operation cycles at 60 cycles per hour.
- Terminal Type: Fixed front terminals.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated current of the C.BREAKER TMAX T7S?
The rated current is 1000 A.
What is the rated operational voltage for this circuit breaker?
The rated operational voltage is 600 V AC.
How many poles does the TMAX T7S circuit breaker have?
It has four poles (4P).
What is the short-circuit interrupting rating for this breaker?
The interrupting rating is 65 kA at 240 V AC, 50 kA at 480 V AC, and 25 kA at 600 V AC.
What type of terminals does the TMAX T7S feature?
It features fixed front terminals.
What is the mechanical durability of the circuit breaker?
The mechanical durability is 10,000 operation cycles at 60 cycles per hour.
What standards and approvals does the TMAX T7S comply with?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 1SDA064786R1 |
|---|---|
| Barcode | 8015644676810 |
| Manufacturer | ABB |
| Number of Poles | 4 Pole |
| Amperage | 1000A |
| Alternative Product SKU | T7S 1000 UL PR332/P LSI In1000A 4p FF M |
