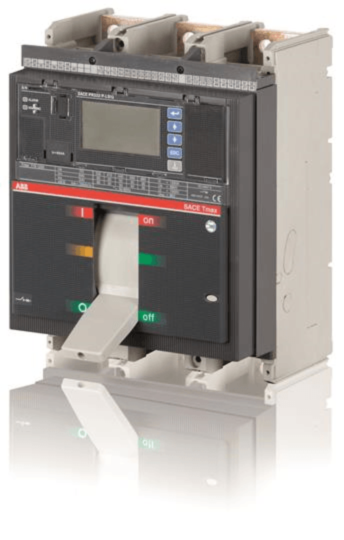

1sda064768r1 t7s 1000 ul pr332/p lsi in=1000a 3 pole abb mccb
MPN: 1SDA064768R1
Alt. SKU: T7S 1000 UL PR332/P LSI In1000A 3p FF
Why Choose the Moulded Case Circuit Breaker [1SDA064768R1]
The TMAX T7S 1000 three-pole circuit breaker features a fixed design with front terminals for straightforward installation and maintenance. It incorporates a lever operating mechanism and a solid-state release, ensuring precise and reliable protection in AC applications. Certified to UL and CSA standards, the PR332/P-LSI R 1000 model delivers consistent performance and compatibility within industrial and commercial electrical systems.
Technical Specification
- Function: Moulded Case Circuit Breaker, three-pole, fixed front terminals with lever operating mechanism.
- Rated Current: 1000 A.
- Rated Operational Voltage: 600 V AC.
- Rated Insulation Voltage: 1000 V.
- Rated Impulse Withstand Voltage: 8 kV.
- Interrupting Capacity (UL489): 65 kA at 240 V AC, 50 kA at 480 V AC, 25 kA at 600 V AC.
- Release Type: Solid-state PR332/P-LSI R release.
- Mechanical Durability: 10,000 cycles at 60 cycles per hour.
- Terminal Type: Fixed circuit breaker front terminals.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated current of the C.BREAKER TMAX T7S?
The rated current is 1000 A.
What is the rated operational voltage for this circuit breaker?
The rated operational voltage is 600 V AC.
What type of release does the TMAX T7S use?
It uses a solid-state PR332/P-LSI R release.
What is the interrupting capacity at 240 V AC?
The interrupting capacity is 65 kA at 240 V AC.
How many mechanical cycles can this circuit breaker endure?
It has a mechanical durability of 10,000 cycles at 60 cycles per hour.
What type of terminals does the TMAX T7S have?
It features fixed front terminals.
What standards and approvals does this product conform to?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 1SDA064768R1 |
|---|---|
| Barcode | 8015644676636 |
| Manufacturer | ABB |
| Number of Poles | 3 Pole |
| Amperage | 1000A |
| Alternative Product SKU | T7S 1000 UL PR332/P LSI In1000A 3p FF |
| Product Lead Time | Please contact us for a delivery time |
