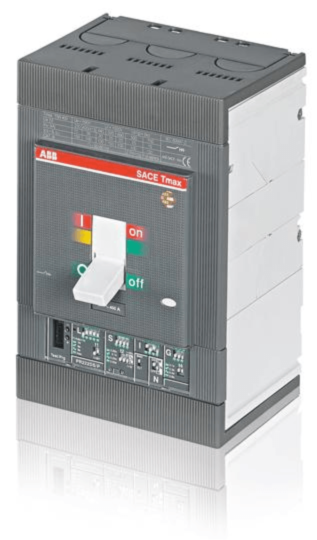

1sda064133r1 t5n 400 ul/csa tma 400 2000-4000 2p abb mccb
MPN: 1SDA064133R1
Alt. SKU: T5N400 UL/CSA TMA 400-2000..4000 2p F F
Why Choose the Moulded Case Circuit Breaker [1SDA064133R1]
The TMAX T5N 400 two-pole circuit breaker features a fixed design with front terminals for straightforward installation and maintenance. It incorporates a thermomagnetic release (TMA R 400) providing reliable protection against overloads and short circuits. Rated for 2000 to 4000 A breaking capacity (I3), this UL/CSA certified device ensures compatibility with North American standards while delivering robust performance in demanding electrical distribution applications.
Technical Specification
- Function: Moulded Case Circuit Breaker with thermomagnetic release.
- Rated Current: 400 A.
- Number of Poles: 2 Poles, fixed with front terminals.
- Rated Operational Voltage: 600 V AC / 600 V DC.
- Rated Insulation Voltage: 1000 V.
- Rated Impulse Withstand Voltage: 8 kV.
- Interrupting Capacity (UL489): Up to 65 kA at 240 V AC, 25 kA at 480 V AC, 18 kA at 600 V AC.
- Mechanical Durability: 20,000 cycles at 120 cycles per hour.
- Release Type: Thermomagnetic (TMA).
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated current of the C.BREAKER TMAX T5N 400?
The rated current is 400 A.
How many poles does the C.BREAKER TMAX T5N 400 have?
It has 2 poles.
What is the rated operational voltage for this circuit breaker?
The rated operational voltage is 600 V AC / 600 V DC.
What is the interrupting capacity of the C.BREAKER TMAX T5N 400?
It has an interrupting capacity of up to 65 kA at 240 V AC, 25 kA at 480 V AC, and 18 kA at 600 V AC.
What type of release does the C.BREAKER TMAX T5N 400 use?
It uses a thermomagnetic release (TMA).
What is the mechanical durability of this circuit breaker?
The mechanical durability is 20,000 cycles at 120 cycles per hour.
What standards and approvals does the C.BREAKER TMAX T5N 400 comply with?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 1SDA064133R1 |
|---|---|
| Barcode | 8015644669942 |
| Manufacturer | ABB |
| Number of Poles | 2 Pole |
| Amperage | 400A |
| Alternative Product SKU | T5N400 UL/CSA TMA 400-2000..4000 2p F F |
| Product Lead Time | Please contact us for a delivery time |
