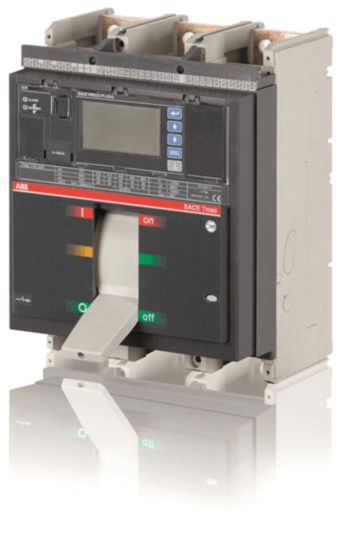

1sda062904r1 t7h 1250 pr332/p lsirc in=1250a 3 pole abb mccb
MPN: 1SDA062904R1
Alt. SKU: T7H 1250 PR332/P LSIRc In=1250A 3p F F
Special Price
£6,901.84
£5,751.53
Regular Price
£10,618.21
Why Choose the Moulded Case Circuit Breaker [1SDA062904R1]
The TMAX T7H 1250 fixed three-pole circuit breaker features front terminals and a lever operating mechanism for straightforward installation and operation. Equipped with a solid-state release, it provides precise and reliable protection in AC applications. Model PR332/P-LSIRc R 1250 is designed to ensure consistent performance and compatibility within industrial and commercial electrical systems.
Technical Specification
- Function: Fixed three-pole moulded case circuit breaker with lever operating mechanism and solid-state release PR332/P-LSIRc EL.
- Rated Current (Iₙ): 1250 A.
- Rated Operational Voltage: 690 V AC.
- Rated Insulation Voltage (Uᵢ): 1000 V.
- Rated Impulse Withstand Voltage (Uᵢₘₚ): 8 kV.
- Short-Circuit Breaking Capacity (Ics): Up to 100 kA (220–230 V AC), 31.5 kA (690 V AC).
- Terminal Type: Fixed front terminals.
- Mechanical Durability: 10,000 cycles at 60 cycles/hour.
- Electrical Durability: 2,000 cycles at 60 cycles/hour.
- Power Loss per Pole: 47 W at rated conditions.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated current of the C.BREAKER TMAX T7H?
The rated current is 1250 A.
What is the maximum short-circuit breaking capacity?
The short-circuit breaking capacity is up to 100 kA at 220–230 V AC and 31.5 kA at 690 V AC.
What type of terminals does this circuit breaker have?
This circuit breaker features fixed front terminals.
What is the rated operational voltage for this product?
The rated operational voltage is 690 V AC.
How many mechanical cycles can this circuit breaker endure?
The mechanical durability is rated for 10,000 cycles at 60 cycles/hour.
What is the power loss per pole at rated conditions?
The power loss per pole is 47 W at rated conditions.
What standards and approvals does this product conform to?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 1SDA062904R1 |
|---|---|
| Barcode | 8015644654535 |
| Manufacturer | ABB |
| Number of Poles | 3 Pole |
| Amperage | 1250A |
| Alternative Product SKU | T7H 1250 PR332/P LSIRc In=1250A 3p F F |
| Product Lead Time | Please contact us for a delivery time |
