1sda062798r1 t7h 1000 pr332/p lsi in=1000a 4 pole abb mccb
MPN: 1SDA062798R1
Alt. SKU: T7H 1000 PR332/P LSI In=1000A 4p F F M
Special Price
£6,160.19
£5,133.49
Regular Price
£9,477.22
Why Choose the Moulded Case Circuit Breaker [1SDA062798R1]

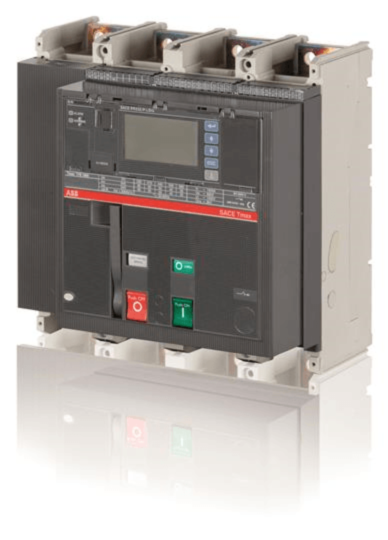

The TMAX T7H 1000 fixed four-pole circuit breaker features front terminals for straightforward installation and maintenance. It incorporates a stored energy operating mechanism combined with a solid-state release, ensuring precise and reliable tripping performance. Designed for AC applications, the PR332/P-LSI R 1000 release provides advanced protection and compatibility with a range of electrical systems, making it suitable for demanding industrial and commercial environments.
Technical Specification
- Function: Moulded Case Circuit Breaker, 4-pole fixed type.
- Rated Operational Voltage: 690 V AC.
- Rated Current (Iₙ): 1000 A.
- Rated Service Short-Circuit Breaking Capacity (Iₛ): Up to 100 kA at 220-230 V AC, decreasing to 31.5 kA at 690 V AC.
- Rated Impulse Withstand Voltage (Uᵢₘₚ): 8 kV.
- Rated Insulation Voltage (Uᵢ): 1000 V.
- Terminal Type: Fixed front terminals.
- Mechanical Durability: 10,000 operations at 60 cycles per hour.
- Electrical Durability: 2,000 operations at 60 cycles per hour.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the function of the C.BREAKER TMAX T7H?
It is a moulded case circuit breaker designed for electrical protection.
What is the rated operational voltage of this circuit breaker?
The rated operational voltage is 690 V AC.
What is the rated current for the TMAX T7H?
The rated current is 1000 A.
What is the short-circuit breaking capacity?
It has a breaking capacity of up to 100 kA at 220-230 V AC, decreasing to 31.5 kA at 690 V AC.
How many operations can this circuit breaker endure mechanically?
It can endure 10,000 mechanical operations at 60 cycles per hour.
What type of terminals does the TMAX T7H have?
It features fixed front terminals.
What should I refer to for standards and approvals?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 1SDA062798R1 |
|---|---|
| Barcode | 8015644653477 |
| Manufacturer | ABB |
| Number of Poles | 4 Pole |
| Amperage | 1000A |
| Alternative Product SKU | T7H 1000 PR332/P LSI In=1000A 4p F F M |
