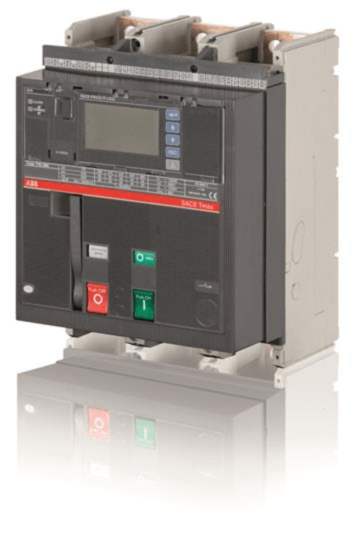

1sda062789r1 t7h 1000 pr332/p li in=1000a 3 pole abb mccb
MPN: 1SDA062789R1
Alt. SKU: T7H 1000 PR332/P LI In=1000A 3p F F M
Special Price
£5,120.11
£4,266.76
Regular Price
£7,877.10
Why Choose the Moulded Case Circuit Breaker [1SDA062789R1]
The TMAX T7H 1000 fixed three-pole circuit breaker features front terminals for straightforward installation and maintenance. It incorporates a stored energy operating mechanism combined with a solid-state release, ensuring reliable and precise trip performance. Designed for compatibility with AC PR332/P-LI R 1000 systems, this breaker delivers consistent protection in demanding electrical distribution applications.
Technical Specification
- Function: Moulded Case Circuit Breaker, three-pole fixed with front terminals.
- Rated Current: 1000 A.
- Rated Operational Voltage: 690 V AC.
- Impulse Withstand Voltage (Uimp): 8 kV.
- Insulation Voltage (Ui): 1000 V.
- Short-Circuit Breaking Capacity (Ics): Up to 100 kA depending on voltage.
- Release Type: PR332/P LI solid-state release, EL type.
- Durability: Electrical 2000 cycles (60 cycles/hour), Mechanical 10000 cycles (60 cycles/hour).
- Power Loss per Pole: 30 W at rated conditions.
- Terminal Connection: Fixed front terminals.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated current of the C.BREAKER TMAX T7H?
The rated current is 1000 A.
What is the maximum operational voltage for this circuit breaker?
The maximum rated operational voltage is 690 V AC.
What type of release does the TMAX T7H use?
It uses a PR332/P LI solid-state release of the EL type.
What is the short-circuit breaking capacity of this circuit breaker?
The short-circuit breaking capacity is up to 100 kA, depending on voltage.
How many electrical cycles can the TMAX T7H endure?
It can endure 2000 electrical cycles at a rate of 60 cycles per hour.
What is the insulation voltage rating for this product?
The insulation voltage rating is 1000 V.
What type of terminal connection does the TMAX T7H have?
It features fixed front terminals.
| Manufacturer Part Number | 1SDA062789R1 |
|---|---|
| Barcode | 8015644653385 |
| Manufacturer | ABB |
| Number of Poles | 3 Pole |
| Amperage | 1000A |
| Alternative Product SKU | T7H 1000 PR332/P LI In=1000A 3p F F M |
| Product Lead Time | Please contact us for a delivery time |
