1sda062771r1 t7h 1000 pr232/p lsi in=1000a 3 pole abb mccb
MPN: 1SDA062771R1
Alt. SKU: T7H 1000 PR232/P LSI In=1000A 3p F F
Special Price
£5,052.72
£4,210.60
Regular Price
£7,773.42
Why Choose the Moulded Case Circuit Breaker [1SDA062771R1]

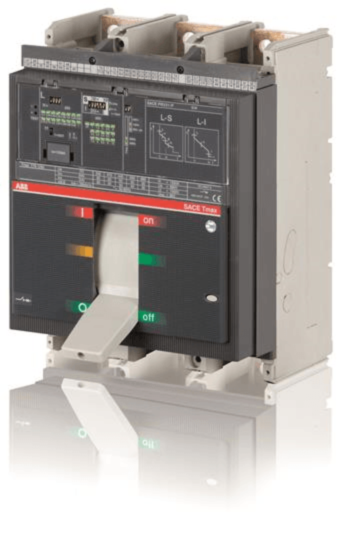

The TMAX T7H 1000 fixed three-pole circuit breaker features front-access terminals and a lever operating mechanism for straightforward installation and operation. It incorporates a solid-state release with PR232/P-LSI technology, providing precise and reliable protection in AC applications. Designed for robust performance, this breaker is suitable for demanding industrial and commercial electrical systems requiring high-capacity fault interruption.
Technical Specification
- Function: Moulded Case Circuit Breaker, 3-pole fixed with front terminals and lever operating mechanism.
- Rated Current (In): 1000 A.
- Rated Operational Voltage: 690 V AC.
- Rated Insulation Voltage (Ui): 1000 V.
- Rated Impulse Withstand Voltage (Uimp): 8 kV.
- Short-Circuit Breaking Capacity (Ics): Up to 100 kA at 220–230 V AC, 31.5 kA at 690 V AC.
- Release Type: PR232/P-LSI, electronic.
- Mechanical Durability: 10,000 operating cycles at 60 cycles per hour.
- Terminal Connection: Fixed front terminals.
- Power Loss per Pole: 30 W at rated operating conditions.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated current of the C.BREAKER TMAX T7H?
The rated current is 1000 A.
What is the maximum short-circuit breaking capacity?
Up to 100 kA at 220–230 V AC and 31.5 kA at 690 V AC.
What type of release mechanism does this circuit breaker use?
It uses an electronic release type PR232/P-LSI.
How is the circuit breaker mounted?
It is a fixed three-pole circuit breaker with front terminals.
What is the rated operational voltage?
The rated operational voltage is 690 V AC.
What is the mechanical durability of the circuit breaker?
The mechanical durability is 10,000 operating cycles at 60 cycles per hour.
What should I refer to for standards and approvals?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 1SDA062771R1 |
|---|---|
| Barcode | 8015644653200 |
| Manufacturer | ABB |
| Number of Poles | 3 Pole |
| Amperage | 1000A |
| Alternative Product SKU | T7H 1000 PR232/P LSI In=1000A 3p F F |
| Product Lead Time | Please contact us for a delivery time |
