1sda062747r1 t7s 1000 pr232/p lsi in=1000a 4 pole abb mccb
MPN: 1SDA062747R1
Alt. SKU: T7S 1000 PR232/P LSI In=1000A 4p F F
Special Price
£5,105.18
£4,254.32
Regular Price
£7,854.13
Why Choose the Moulded Case Circuit Breaker [1SDA062747R1]

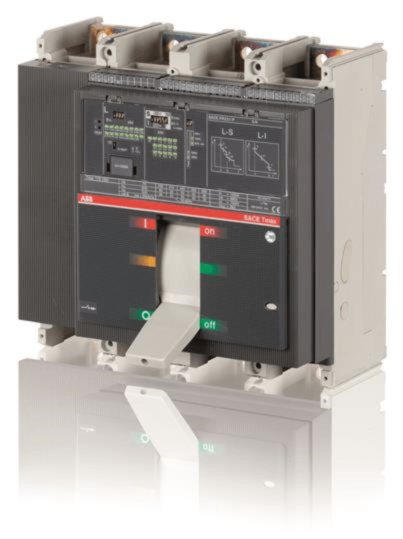

The C.BREAKER TMAX T7S 1000 is a fixed four-pole circuit breaker featuring front terminals for straightforward installation and maintenance. It incorporates a lever operating mechanism for reliable manual control and is equipped with a solid-state release unit, model PR232/P-LSI R 1000, providing precise and consistent protection in AC applications. This breaker is designed to deliver dependable performance in demanding electrical distribution systems.
Technical Specification
- Function: Moulded case circuit breaker with lever operating mechanism and solid-state PR232/P-LSI release.
- Number of Poles: 4P (four-pole configuration).
- Rated Current (In): 1000 A.
- Rated Operational Voltage: 690 V AC.
- Rated Insulation Voltage (Ui): 1000 V.
- Rated Impulse Withstand Voltage (Uimp): 8 kV.
- Short-Circuit Breaking Capacity (Ics): Up to 85 kA (230 V AC), decreasing to 30 kA at 690 V AC.
- Terminal Type: Fixed front terminals.
- Mechanical Durability: 10,000 cycles at 60 cycles per hour.
- Electrical Durability: 2,000 cycles at 60 cycles per hour.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated current of the C.BREAKER TMAX T7S?
The rated current is 1000 A.
How many poles does the C.BREAKER TMAX T7S have?
It has a four-pole configuration (4P).
What is the maximum short-circuit breaking capacity?
Up to 85 kA at 230 V AC, decreasing to 30 kA at 690 V AC.
What type of terminals does the C.BREAKER TMAX T7S have?
It features fixed front terminals.
What is the rated operational voltage for this circuit breaker?
The rated operational voltage is 690 V AC.
What is the mechanical durability of the C.BREAKER TMAX T7S?
It has a mechanical durability of 10,000 cycles at 60 cycles per hour.
Does the C.BREAKER TMAX T7S comply with any standards?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 1SDA062747R1 |
|---|---|
| Barcode | 8015644652968 |
| Manufacturer | ABB |
| Number of Poles | 4 Pole |
| Amperage | 1000A |
| Alternative Product SKU | T7S 1000 PR232/P LSI In=1000A 4p F F |
| Product Lead Time | Please contact us for a delivery time |
