1sda062661r1 t7h 800 pr332/p li in=800a 3 pole abb mccb
MPN: 1SDA062661R1
Alt. SKU: T7H 800 PR332/P LI In=800A 3p F F M
Special Price
£4,128.44
£3,440.37
Regular Price
£6,351.46
Why Choose the Moulded Case Circuit Breaker [1SDA062661R1]

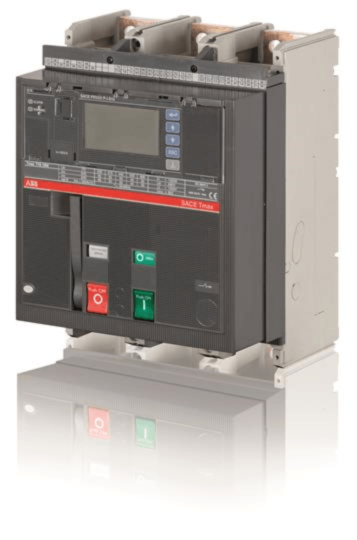

The TMAX T7H 800 fixed three-pole circuit breaker features front terminals for straightforward installation and maintenance. It incorporates a stored energy operating mechanism combined with a solid-state release, ensuring precise and reliable tripping performance. Designed for AC applications, this model PR332/P-LI R 800 delivers robust protection and compatibility with a wide range of industrial electrical systems.
Technical Specification
- Function: Moulded Case Circuit Breaker, Three-Pole (3P) fixed with front terminals.
- Rated Current (In): 800 A.
- Rated Operational Voltage: 690 V AC.
- Rated Insulation Voltage (Ui): 1000 V.
- Rated Impulse Withstand Voltage (Uimp): 8 kV.
- Short-Circuit Breaking Capacity (Ics): Up to 100 kA at 230 V AC, decreasing to 31.5 kA at 690 V AC.
- Mechanical Durability: 10,000 cycles at 60 cycles per hour.
- Electrical Durability: 2,000 cycles at 60 cycles per hour.
- Release Type: PR332/P-LI solid-state release mechanism.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated current of the C.BREAKER TMAX T7H?
The rated current is 800 A.
What is the maximum operational voltage for this circuit breaker?
The maximum rated operational voltage is 690 V AC.
What is the short-circuit breaking capacity at 690 V AC?
The short-circuit breaking capacity decreases to 31.5 kA at 690 V AC.
How many mechanical cycles can the C.BREAKER TMAX T7H endure?
It has a mechanical durability of 10,000 cycles at 60 cycles per hour.
What type of release mechanism does this circuit breaker use?
It uses a PR332/P-LI solid-state release mechanism.
Are there any specific standards or approvals for this product?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 1SDA062661R1 |
|---|---|
| Barcode | 8015644652104 |
| Manufacturer | ABB |
| Number of Poles | 3 Pole |
| Amperage | 800A |
| Alternative Product SKU | T7H 800 PR332/P LI In=800A 3p F F M |
| Product Lead Time | Please contact us for a delivery time |
