1sda062655r1 t7h 800 pr332/p lsig in=800a 4 pole abb mccb
MPN: 1SDA062655R1
Alt. SKU: T7H 800 PR332/P LSIG In=800A 4p F F
Special Price
£5,971.10
£4,975.92
Regular Price
£9,186.31
Why Choose the Moulded Case Circuit Breaker [1SDA062655R1]

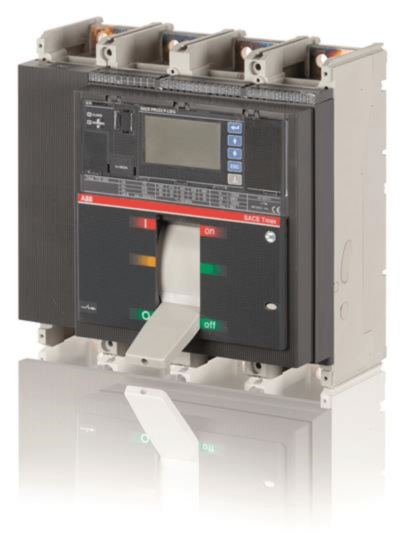

The TMAX T7H 800 fixed four-pole circuit breaker features front terminals and a lever operating mechanism for straightforward installation and operation. It incorporates a solid-state release with LSIG protection, ensuring precise and reliable tripping characteristics in AC applications. Designed to meet rigorous performance standards, this breaker is suitable for industrial and commercial electrical distribution systems requiring robust overload, short-circuit, and earth fault protection.
Technical Specification
- Function: Moulded Case Circuit Breaker.
- Number of Poles: 4P (Four-pole).
- Rated Current (I n): 800 A.
- Rated Operational Voltage: 690 V AC.
- Rated Insulation Voltage (U i): 1000 V.
- Rated Impulse Withstand Voltage (U imp): 8 kV.
- Short-Circuit Breaking Capacity (I cs at 230 V AC): 100 kA.
- Terminal Type: Fixed front terminals.
- Mechanical Durability: 10,000 cycles at 60 cycles/hour.
- Electrical Durability: 2,000 cycles at 60 cycles/hour.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated current of the C.BREAKER TMAX T7H?
The rated current is 800 A.
How many poles does the C.BREAKER TMAX T7H have?
This circuit breaker has four poles (4P).
What is the rated operational voltage for this circuit breaker?
The rated operational voltage is 690 V AC.
What type of terminals does the C.BREAKER TMAX T7H use?
It features fixed front terminals.
What is the short-circuit breaking capacity of this breaker?
The short-circuit breaking capacity is 100 kA at 230 V AC.
What is the mechanical durability of the C.BREAKER TMAX T7H?
The mechanical durability is rated for 10,000 cycles at 60 cycles/hour.
What standards and approvals does the C.BREAKER TMAX T7H conform to?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 1SDA062655R1 |
|---|---|
| Barcode | 8015644652043 |
| Manufacturer | ABB |
| Number of Poles | 4 Pole |
| Amperage | 800A |
| Alternative Product SKU | T7H 800 PR332/P LSIG In=800A 4p F F |
| Product Lead Time | Please contact us for a delivery time |
