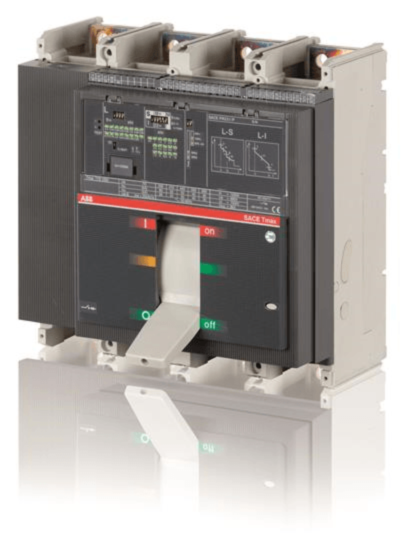

1sda062651r1 t7h 800 pr232/p lsi in=800a 4 pole abb mccb
MPN: 1SDA062651R1
Alt. SKU: T7H 800 PR232/P LSI In=800A 4p F F
Special Price
£5,030.75
£4,192.29
Regular Price
£7,739.62
Why Choose the Moulded Case Circuit Breaker [1SDA062651R1]
The TMAX T7H 800 fixed four-pole circuit breaker features front terminals and a lever operating mechanism for straightforward installation and operation. It incorporates a solid-state release with PR232/P-LSI protection, ensuring precise and reliable trip performance in AC applications. This robust design is suitable for demanding electrical distribution systems requiring dependable overload and short-circuit protection.
Technical Specification
- Function: Moulded Case Circuit Breaker, 4 poles with fixed front terminals.
- Rated Current (In): 800 A.
- Rated Operational Voltage: 690 V AC.
- Rated Insulation Voltage (Ui): 1000 V.
- Rated Impulse Withstand Voltage (Uimp): 8 kV.
- Short-Circuit Breaking Capacity (Ics): Up to 100 kA dependent on voltage level.
- Release Type: PR232/P-LSI solid-state release with lever operation.
- Mechanical Durability: 10,000 cycles at 60 cycles/hour.
- Electrical Durability: 2,000 cycles at 60 cycles/hour.
- Power Loss per Pole: 19.3 W at rated conditions.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated current of the C.BREAKER TMAX T7H?
The rated current (In) of the C.BREAKER TMAX T7H is 800 A.
What is the maximum short-circuit breaking capacity?
The short-circuit breaking capacity (Ics) can reach up to 100 kA, depending on the voltage level.
What type of release mechanism does this circuit breaker use?
This circuit breaker features a PR232/P-LSI solid-state release with lever operation.
What is the rated operational voltage for this product?
The rated operational voltage is 690 V AC.
How durable is the C.BREAKER TMAX T7H?
It has a mechanical durability of 10,000 cycles at 60 cycles/hour and an electrical durability of 2,000 cycles at the same rate.
What is the power loss per pole at rated conditions?
The power loss per pole at rated conditions is 19.3 W.
What standards and approvals does this product conform to?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 1SDA062651R1 |
|---|---|
| Barcode | 8015644652005 |
| Manufacturer | ABB |
| Number of Poles | 4 Pole |
| Amperage | 800A |
| Alternative Product SKU | T7H 800 PR232/P LSI In=800A 4p F F |
| Product Lead Time | Please contact us for a delivery time |
