1sda062648r1 t7h 800 pr332/p lsirc in=800a 3 pole abb mccb
MPN: 1SDA062648R1
Alt. SKU: T7H 800 PR332/P LSIRc In=800A 3p F F
Special Price
£5,147.34
£4,289.45
Regular Price
£7,918.99
Why Choose the Moulded Case Circuit Breaker [1SDA062648R1]

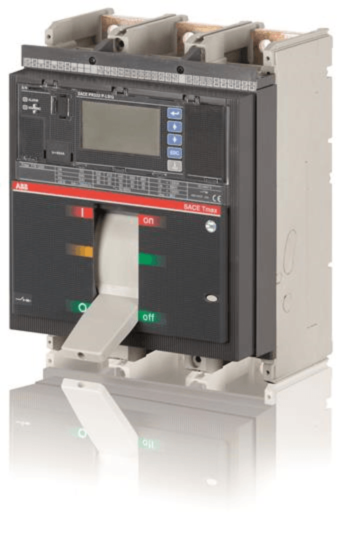

The TMAX T7H 800 fixed three-pole circuit breaker features front-access terminals and a lever operating mechanism for straightforward installation and operation. Equipped with a solid-state release, it provides precise and reliable protection in AC applications. This model, PR332/P-LSIRc R 800, is designed to meet demanding electrical distribution requirements, ensuring compatibility and durability in industrial and commercial environments.
Technical Specification
- Function: Moulded Case Circuit Breaker, fixed three-pole with front terminals and lever operating mechanism.
- Rated Current (In): 800 A.
- Rated Operational Voltage: 690 V AC.
- Rated Insulation Voltage (Ui): 1000 V.
- Rated Impulse Withstand Voltage (Uimp): 8 kV.
- Short-Circuit Breaking Capacity (Ics): Up to 100 kA at 220-230 V AC; 31.5 kA at 690 V AC.
- Mechanical Durability: 10,000 cycles at 60 cycles/hour.
- Electrical Durability: 2,000 cycles at 60 cycles/hour.
- Terminal Connection Type: Fixed front terminals.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated current of the C.BREAKER TMAX T7H?
The rated current (I n) is 800 A.
What is the maximum operational voltage for this circuit breaker?
The rated operational voltage is 690 V AC.
What is the short-circuit breaking capacity of the TMAX T7H?
It can handle up to 100 kA at 220-230 V AC and 31.5 kA at 690 V AC.
How many mechanical cycles can the circuit breaker endure?
It has a mechanical durability of 10,000 cycles at 60 cycles/hour.
What type of terminal connection does this circuit breaker use?
It features fixed front terminals.
What is the rated insulation voltage for the TMAX T7H?
The rated insulation voltage (U i) is 1000 V.
What should I refer to for standards and approvals of the product?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 1SDA062648R1 |
|---|---|
| Barcode | 8015644651978 |
| Manufacturer | ABB |
| Number of Poles | 3 Pole |
| Amperage | 800A |
| Alternative Product SKU | T7H 800 PR332/P LSIRc In=800A 3p F F |
| Product Lead Time | Please contact us for a delivery time |
