1sda062644r1 t7h 800 pr331/p lsig in=800a 3 pole abb mccb
MPN: 1SDA062644R1
Alt. SKU: T7H 800 PR331/P LSIG In=800A 3p F F
Special Price
£4,521.73
£3,768.11
Regular Price
£6,956.51
Why Choose the Moulded Case Circuit Breaker [1SDA062644R1]

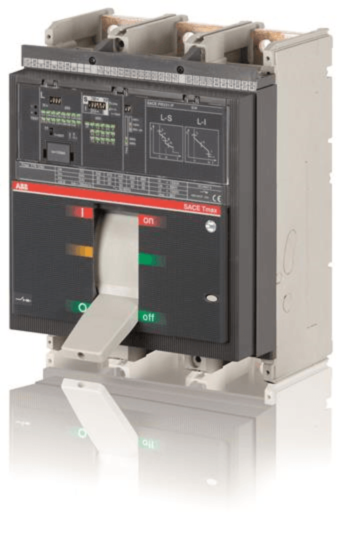

The TMAX T7H 800 fixed three-pole circuit breaker features front terminals and a lever operating mechanism for straightforward installation and operation. It incorporates a solid-state release with AC PR331/P-LSIG characteristics, providing precise and reliable protection up to 800A. Designed for compatibility with industrial and commercial electrical systems, this breaker ensures robust performance and enhanced safety in demanding applications.
Technical Specification
- Type: Fixed three-pole moulded case circuit breaker with lever operating mechanism.
- Rated Current: 800 A.
- Rated Operational Voltage: 690 V AC.
- Rated Insulation Voltage (Ui): 1000 V.
- Rated Impulse Withstand Voltage (Uimp): 8 kV.
- Short-Circuit Breaking Capacity (Ics): Up to 100 kA at 230 V AC, 31.5 kA at 690 V AC.
- Terminal Type: Front fixed terminals.
- Electrical Durability: 2,000 operations at 60 cycles per hour.
- Mechanical Durability: 10,000 operations at 60 cycles per hour.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated current of the C.BREAKER TMAX T7H?
The rated current is 800 A.
What is the maximum short-circuit breaking capacity?
Up to 100 kA at 230 V AC and 31.5 kA at 690 V AC.
What type of terminals does this circuit breaker have?
It features front fixed terminals.
What is the rated operational voltage for this circuit breaker?
The rated operational voltage is 690 V AC.
What is the electrical durability of the C.BREAKER TMAX T7H?
It has an electrical durability of 2,000 operations at 60 cycles per hour.
What is the mechanical durability of this product?
The mechanical durability is 10,000 operations at 60 cycles per hour.
What standards and approvals does this product conform to?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 1SDA062644R1 |
|---|---|
| Barcode | 8015644651930 |
| Manufacturer | ABB |
| Number of Poles | 3 Pole |
| Amperage | 800A |
| Alternative Product SKU | T7H 800 PR331/P LSIG In=800A 3p F F |
