1sda061679r1 t6h 800 ul/csa pr222ds/p-lsi 600 4 pole abb mccb
MPN: 1SDA061679R1
Alt. SKU: T6H 800 UL/CSA PR222DS/P-LSI 600 4p F F
Why Choose the Moulded Case Circuit Breaker [1SDA061679R1]

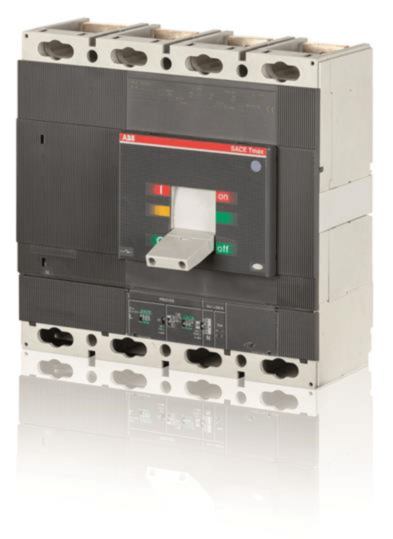

The C.BREAKER TMAX T6H 800 UL/CSA is a fixed four-pole circuit breaker featuring front terminals for straightforward installation and maintenance. It incorporates a solid-state release mechanism, providing precise and reliable protection in AC applications. Designed to meet UL and CSA standards, the PR222DS/P-LSI R 600 model ensures compatibility with industrial electrical systems requiring robust, high-performance circuit interruption.
Technical Specification
- Function: Moulded Case Circuit Breaker, four-pole fixed with front terminals.
- Rated Current (Iₙ): 600 A.
- Rated Operational Voltage: 600 V AC.
- Rated Uninterrupted Current (Iᵤ): 800 A.
- Impulse Withstand Voltage (Uᵢₘₚ): 8 kV.
- Insulation Voltage (Uᵢ): 1000 V.
- Release Type: PR222DS/P-LSI solid-state release, Type EL.
- Short-Circuit Interrupting Rating (UL489): 240 V AC 200 kA, 480 V AC 65 kA, 600 V AC 35 kA.
- Mechanical Durability: 20,000 cycles at 120 cycles per hour.
- Terminal Connection: Fixed front terminals.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated current of the C.BREAKER TMAX T6H?
The rated current (Iₙ) is 600 A.
What is the maximum operational voltage for this circuit breaker?
The rated operational voltage is 600 V AC.
What type of release does the TMAX T6H use?
It uses a PR222DS/P-LSI solid-state release, Type EL.
What is the short-circuit interrupting rating for 600 V AC?
The short-circuit interrupting rating for 600 V AC is 35 kA.
How many mechanical cycles can the TMAX T6H endure?
It has a mechanical durability of 20,000 cycles at 120 cycles per hour.
What type of terminal connection does this circuit breaker have?
It features fixed front terminals.
What standards and approvals does the TMAX T6H conform to?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 1SDA061679R1 |
|---|---|
| Barcode | 8015644642181 |
| Manufacturer | ABB |
| Number of Poles | 3 Pole |
| Amperage | 600A |
| Alternative Product SKU | T6H 800 UL/CSA PR222DS/P-LSI 600 4p F F |
| Product Lead Time | Please contact us for a delivery time |
