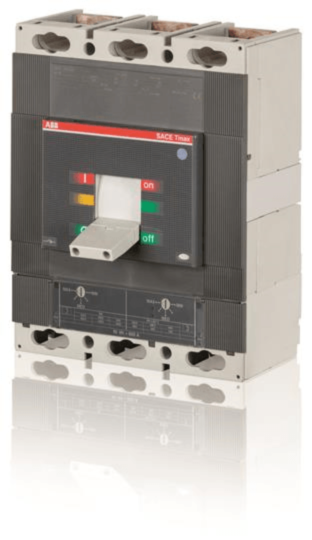

1sda060290r1 t6h 800 pr221ds-i in=800 3 pole abb mccb
MPN: 1SDA060290R1
Alt. SKU: T6H 800 PR221DS-I In=800 3p F F
Special Price
£3,400.26
£2,833.55
Regular Price
£5,231.16
Why Choose the Moulded Case Circuit Breaker [1SDA060290R1]
The TMAX T6H 800A fixed three-pole circuit breaker features front-access terminals and an integrated solid-state release for precise protection. Designed for reliable performance in AC distribution systems, the PR221DS-I R 800 model ensures robust fault interruption and enhanced operational safety. Its fixed configuration and solid-state trip unit provide consistent, maintenance-free operation, making it suitable for industrial and commercial electrical installations.
Technical Specification
- Function: Fixed three-pole moulded case circuit breaker with solid-state release.
- Rated Current (In): 800 A.
- Rated Operational Voltage: 690 V AC.
- Impulse Withstand Voltage (Uimp): 8 kV.
- Insulation Voltage (Ui): 1000 V.
- Short-Circuit Breaking Capacity (Ics): Up to 100 kA depending on voltage.
- Contact Configuration: 3 poles (3P).
- Terminal Connection: Fixed front terminals.
- Mechanical Durability: 20,000 cycles at 120 cycles/hour.
- Electrical Durability: 5,000 cycles at 60 cycles/hour.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated current of the C.BREAKER TMAX T6H 800?
The rated current is 800 A.
What is the maximum operational voltage for this circuit breaker?
The rated operational voltage is 690 V AC.
What is the short-circuit breaking capacity of the TMAX T6H 800?
The short-circuit breaking capacity can be up to 100 kA, depending on voltage.
How many poles does the C.BREAKER TMAX T6H 800 have?
It has a contact configuration of 3 poles (3P).
What type of terminals does this circuit breaker use?
It features fixed front terminals.
What is the mechanical durability of the TMAX T6H 800?
The mechanical durability is rated for 20,000 cycles at 120 cycles/hour.
What standards and approvals does this product conform to?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 1SDA060290R1 |
|---|---|
| Barcode | 8015644627515 |
| Manufacturer | ABB |
| Number of Poles | 3 Pole |
| Amperage | 800A |
| Alternative Product SKU | T6H 800 PR221DS-I In=800 3p F F |
| Product Lead Time | Please contact us for a delivery time |
