1sda060115r1 t5n 400ul csapr221ds-ls/i in=300 4 pole abb mccb
MPN: 1SDA060115R1
Alt. SKU: T5N 400 UL/CSA PR221DS-LS/I 300 4p F F
Why Choose the Moulded Case Circuit Breaker [1SDA060115R1]

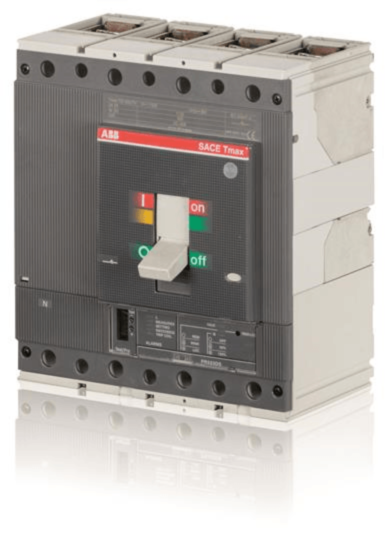

The TMAX T5N 400A fixed four-pole circuit breaker features front terminals for straightforward installation and maintenance. It incorporates a solid-state release mechanism, ensuring precise and reliable trip performance in AC applications. Certified to UL and CSA standards, this model PR221DS-LS/I R 300 offers robust protection and compatibility for industrial and commercial electrical systems.
Technical Specification
- Function: Moulded Case Circuit Breaker, 4 poles, fixed with front terminals.
- Rated Current (In): 300 A.
- Rated Operational Voltage: 600 V AC.
- Rated Uninterrupted Current (Iu): 400 A.
- Impulse Withstand Voltage (Uimp): 8 kV.
- Rated Insulation Voltage (Ui): 1000 V.
- Interrupting Rating (UL489): 65 kA at 240 V AC, 25 kA at 480 V AC, 18 kA at 600 V AC.
- Mechanical Durability: 20,000 cycles at 120 cycles/hour.
- Terminal Connection Type: Fixed front terminals.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated current of the C.BREAKER TMAX T5N 400?
The rated current (I n) is 300 A.
What is the rated operational voltage for this circuit breaker?
The rated operational voltage is 600 V AC.
What is the interrupting rating of the C.BREAKER TMAX T5N 400?
The interrupting rating is 65 kA at 240 V AC, 25 kA at 480 V AC, and 18 kA at 600 V AC.
How many poles does the C.BREAKER TMAX T5N 400 have?
This circuit breaker has 4 poles.
What type of terminal connection does this circuit breaker use?
It features fixed front terminals.
What is the mechanical durability of the C.BREAKER TMAX T5N 400?
The mechanical durability is rated for 20,000 cycles at 120 cycles/hour.
What standards and approvals does this product conform to?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 1SDA060115R1 |
|---|---|
| Barcode | 8015644625610 |
| Manufacturer | ABB |
| Number of Poles | 4 Pole |
| Amperage | 300A |
| Alternative Product SKU | T5N 400 UL/CSA PR221DS-LS/I 300 4p F F |
| Product Lead Time | Please contact us for a delivery time |
