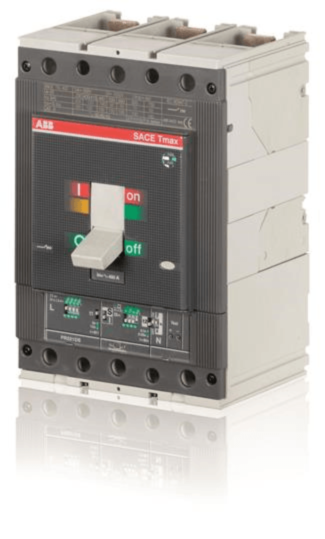

1sda058166r1 t5h 400ul csapr222ds/p-lsig 400 3 pole abb mccb
MPN: 1SDA058166R1
Alt. SKU: T5H 400 UL/CSA PR222DS/P-LSIG 400 3p F F
Why Choose the Moulded Case Circuit Breaker [1SDA058166R1]
The TMAX T5H 400 three-pole circuit breaker features a fixed design with front terminals for straightforward installation and maintenance. It incorporates a solid-state release mechanism, providing precise and reliable protection in AC applications. Certified to UL and CSA standards, the PR222DS/P-LSIG R 400 model ensures compliance and compatibility with North American electrical systems, making it suitable for industrial and commercial use where robust performance and safety are critical.
Technical Specification
- Function: Moulded Case Circuit Breaker, three-pole fixed with front terminals.
- Rated Current (In): 400 A.
- Rated Operational Voltage: 600 V AC.
- Rated Insulation Voltage (Ui): 1000 V.
- Rated Impulse Withstand Voltage (Uimp): 8 kV.
- Short-Circuit Interrupting Rating (UL489): 150 kA at 240 V AC, 65 kA at 480 V AC, 35 kA at 600 V AC.
- Release Type: Solid-state PR222DS/P-LSIG (EL type).
- Mechanical Durability: 20,000 operations at 120 cycles per hour.
- Terminal Connection: Fixed front terminals.
- Power Loss per Pole: 16.5 W at rated conditions.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated current of the C.BREAKER TMAX T5H 400?
The rated current is 400 A.
What is the maximum operational voltage for this circuit breaker?
The maximum rated operational voltage is 600 V AC.
What type of release does this circuit breaker use?
It uses a solid-state PR222DS/P-LSIG (EL type) release.
What is the short-circuit interrupting rating for 480 V AC?
The short-circuit interrupting rating is 65 kA at 480 V AC.
How many operations can the circuit breaker endure mechanically?
It has a mechanical durability of 20,000 operations at 120 cycles per hour.
What is the power loss per pole at rated conditions?
The power loss per pole is 16.5 W at rated conditions.
What standards and approvals does this product conform to?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 1SDA058166R1 |
|---|---|
| Barcode | 8015644604318 |
| Manufacturer | ABB |
| Number of Poles | 3 Pole |
| Amperage | 400A |
| Alternative Product SKU | T5H 400 UL/CSA PR222DS/P-LSIG 400 3p F F |
| Product Lead Time | Please contact us for a delivery time |
