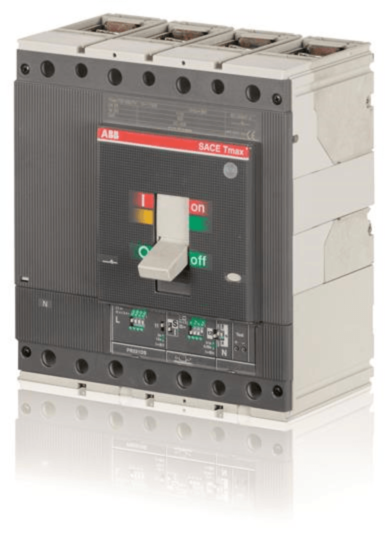

1sda054416r1 t5h 630 pr221ds-ls/i in=630 4 pole abb mccb
MPN: 1SDA054416R1
Alt. SKU: T5H 630 PR221DS-LS/I In=630 4p F F
Special Price
£3,322.79
£2,768.99
Regular Price
£5,111.99
Why Choose the Moulded Case Circuit Breaker [1SDA054416R1]
The TMAX T5H 630 fixed four-pole circuit breaker features front terminals for straightforward installation and maintenance. Equipped with a solid-state release, it ensures precise and reliable protection in AC applications. Model PR221DS-LS/I R 630 is engineered for robust performance in demanding electrical distribution systems, offering compatibility with a range of industrial and commercial setups.
Technical Specification
- Function: Moulded Case Circuit Breaker, fixed four-pole with solid-state release.
- Rated Current (I n ): 630 A.
- Rated Operational Voltage: 690 V AC.
- Number of Poles: 4P.
- Rated Insulation Voltage (U i ): 1000 V.
- Rated Impulse Withstand Voltage (U imp ): 8 kV.
- Short-Circuit Breaking Capacity (I cs / I cu ): Up to 100 kA at 220-230 V AC; 40 kA at 690 V AC.
- Terminal Type: Fixed front terminals.
- Mechanical Durability: 20,000 cycles at 120 cycles/hour.
- Electrical Durability: 5,000 cycles at 60 cycles/hour.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated current of the C.BREAKER TMAX T5H 630?
The rated current is 630 A.
What is the maximum operational voltage for this circuit breaker?
The maximum rated operational voltage is 690 V AC.
How many poles does the TMAX T5H 630 have?
This circuit breaker has four poles (4P).
What is the short-circuit breaking capacity of this product?
The short-circuit breaking capacity is up to 100 kA at 220-230 V AC and 40 kA at 690 V AC.
What type of terminals does the TMAX T5H 630 have?
It has fixed front terminals.
What is the mechanical durability of this circuit breaker?
The mechanical durability is rated for 20,000 cycles at 120 cycles/hour.
What standards and approvals does this product conform to?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 1SDA054416R1 |
|---|---|
| Barcode | 8015644555207 |
| Manufacturer | ABB |
| Number of Poles | 4 Pole |
| Amperage | 630A |
| Alternative Product SKU | T5H 630 PR221DS-LS/I In=630 4p F F |
| Product Lead Time | Please contact us for a delivery time |
