1sda054398r1 t5n 630 pr222ds/p-lsi in=630 3 pole abb mccb
MPN: 1SDA054398R1
Alt. SKU: T5N 630 PR222DS/P-LSI In=630 3p F F
Special Price
£2,776.73
£2,313.94
Regular Price
£4,271.88
Why Choose the Moulded Case Circuit Breaker [1SDA054398R1]

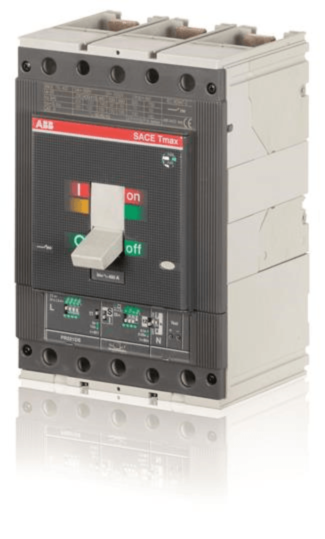

The TMAX T5N 630 fixed three-pole circuit breaker features front-facing terminals for straightforward installation and maintenance. Equipped with a solid-state release, it ensures precise and reliable protection in AC applications. Designed for robust performance, the PR222DS/P-LSI R 630 model delivers consistent operation and compatibility with a wide range of electrical systems.
Technical Specification
- Function: 3-pole moulded case circuit breaker with solid-state release.
- Rated Current (Iₙ): 630 A.
- Rated Operational Voltage: 690 V AC.
- Rated Insulation Voltage (Uᵢ): 1000 V.
- Rated Impulse Withstand Voltage (Uᵢₘₚ): 8 kV.
- Short-Circuit Breaking Capacity (I_cs / I_cu): Up to 70 kA at 220-230 V AC, reducing to 20 kA at 690 V AC.
- Terminal Type: Fixed front terminals.
- Mechanical Durability: 20,000 cycles at 120 cycles per hour.
- Electrical Durability: 5,000 cycles at 60 cycles per hour.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated current of the C.BREAKER TMAX T5N 630?
The rated current is 630 A.
What is the maximum operational voltage for this circuit breaker?
The maximum rated operational voltage is 690 V AC.
What type of terminals does the TMAX T5N 630 have?
It features fixed front terminals.
What is the short-circuit breaking capacity at 690 V AC?
The short-circuit breaking capacity reduces to 20 kA at 690 V AC.
How many mechanical cycles can the circuit breaker endure?
The mechanical durability is rated for 20,000 cycles at 120 cycles per hour.
What is the electrical durability of the TMAX T5N 630?
The electrical durability is 5,000 cycles at 60 cycles per hour.
What standards and approvals does this product conform to?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 1SDA054398R1 |
|---|---|
| Barcode | 8015644554965 |
| Manufacturer | ABB |
| Number of Poles | 3 Pole |
| Amperage | 630A |
| Alternative Product SKU | T5N 630 PR222DS/P-LSI In=630 3p F F |
| Product Lead Time | Please contact us for a delivery time |
