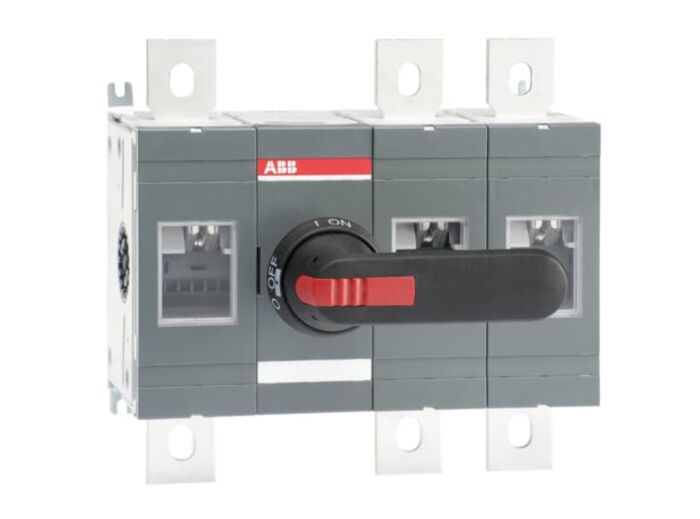

1SCA162999R1001 ABB OTHV800E12P 3 Pole 800VAC to 1000VAC 800A Switch Disconnector
MPN: 1SCA162999R1001
Alt. SKU: OTHV800E12P
Why Choose the OTHV800E12P [1SCA162999R1001]
The OTHV-series is a 3-pole, front-operated switch disconnector designed for base mounting in 800 to 1000VAC systems. It features a robust shaft and handle, both included, ensuring reliable operation and ease of installation in industrial and commercial electrical installations.
Technical Specification
- Function: 3-pole front operated base mounted switch disconnector.
- Rated Operational Current (AC-21A/AC-22A): 800 A at 800…1000 V AC.
- Rated Operational Current (AC-23A): 400 A at 800 V AC.
- Rated Insulation Voltage (Ui): 1000 V (IEC 60947-1).
- Rated Impulse Withstand Voltage (Uimp): 12 kV.
- Degree of Protection: Front IP00.
- Terminal Type and Width: Lug terminals, 39 mm.
- Tightening Torque: 50…75 N·m (IEC 60947-1).
- Mechanical Durability: 10,000 operations.
- Short-Circuit Ratings: Making capacity 80 kA (1000 V), withstand current 20 kA for 1 s.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated operational current for this switch disconnector?
The rated operational current is 800 A at 800…1000 V AC for AC-21A/AC-22A and 400 A at 800 V AC for AC-23A.
What is the degree of protection for this product?
The degree of protection is Front IP00.
What type of terminals does this switch disconnector use?
This switch disconnector uses lug terminals with a width of 39 mm.
What is the mechanical durability of the switch disconnector?
The mechanical durability is rated for 10,000 operations.
What is the tightening torque for the terminals?
The tightening torque is between 50 and 75 N·m as per IEC 60947-1.
What are the short-circuit ratings for this product?
The making capacity is 80 kA at 1000 V, and the withstand current is 20 kA for 1 second.
Is there any conformity information available for this product?
See the manufacturer's data sheet for standards and approvals.
| Alternative Product SKU | OTHV800E12P |
|---|---|
| Manufacturer Part Number | 1SCA162999R1001 |
| Manufacturer | ABB |
| Barcode | 6417019929514 |
| Number of Poles | 3 Pole |
| Number of switches | 1 |
| Rated operating voltage | 1000V |
| Device construction | Complete device in housing |
| Suitable for distribution board installation | Yes |
| Type of control element | Other |
| Colour control element | Black |
| Rated permanent current Iu | 800A |
| Voltage | 800-1000VAC |
| Degree of protection (IP) | IP00 |
| Degree of protection (NEMA) | Other |
| Type of electric connection | Bolt connection |
| Packed Quantity | 1 |
| Height | 250mm |
| Width | 266mm |
| Depth | 140mm |
| HS Code | 85365080 |
| Country of Manufacture | Finland |
