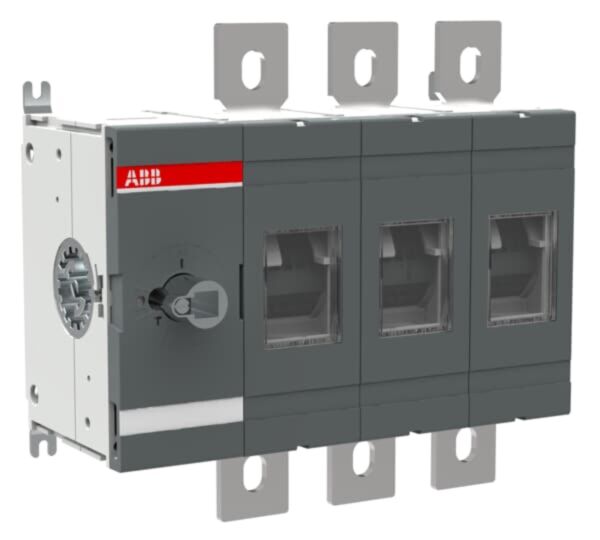

1SCA162994R1001 ABB OTHV800E03 3 Pole 800VAC to 1000VAC 800A Switch Disconnector
MPN: 1SCA162994R1001
Alt. SKU: OTHV800E03
Why Choose the OTHV800E03 [1SCA162994R1001]
The OTHV-series 3-pole front-operated base-mounted switch disconnector is designed for use in 800 to 1000 VAC electrical systems. It provides reliable isolation and switching capabilities for industrial and commercial applications. Please note that the shaft and handle are supplied separately and must be ordered in addition to the switch disconnector.
Technical Specification
- Type: 3-pole front operated base mounted switch disconnector.
- Operational Voltage: Rated insulation voltage 1000 V AC (IEC 60947-1).
- Current Ratings: 800 A conventional free-air thermal and thermal current.
- Impulse Withstand Voltage: 12 kV.
- Degree of Protection: Front IP00.
- Terminal Type: Lug terminals, 39 mm width.
- Tightening Torque: 50–75 N·m (IEC 60947-1).
- Mechanical Durability: 10,000 operations.
- Rated Short-Circuit Capacities: Making capacity 80 kA, short-time withstand current 20 kA for 1 s.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the operational voltage of the OTHV-series switch disconnector?
The operational voltage is rated at 1000 V AC.
What are the current ratings for this switch disconnector?
The current ratings are 800 A conventional free-air thermal and thermal current.
What type of terminals does the OTHV-series switch disconnector use?
It uses lug terminals with a width of 39 mm.
What is the degree of protection for this product?
The degree of protection is IP00.
What is the mechanical durability of the OTHV-series switch disconnector?
The mechanical durability is rated for 10,000 operations.
What is the making capacity and short-time withstand current?
The making capacity is 80 kA, and the short-time withstand current is 20 kA for 1 second.
Is there any conformity information available for this product?
See the manufacturer's data sheet for standards and approvals.
| Alternative Product SKU | OTHV800E03 |
|---|---|
| Manufacturer Part Number | 1SCA162994R1001 |
| Manufacturer | ABB |
| Barcode | 6417019929460 |
| Number of Poles | 3 Pole |
| Number of switches | 1 |
| Rated operating voltage | 1000V |
| Device construction | Complete device in housing |
| Suitable for distribution board installation | Yes |
| Type of control element | Other |
| Rated permanent current Iu | 800A |
| Voltage | 800-1000VAC |
| Degree of protection (IP) | IP00 |
| Degree of protection (NEMA) | Other |
| Type of electric connection | Bolt connection |
| Packed Quantity | 1 |
| Height | 250mm |
| Width | 266mm |
| Depth | 140mm |
| HS Code | 85365080 |
| Country of Manufacture | Finland |
