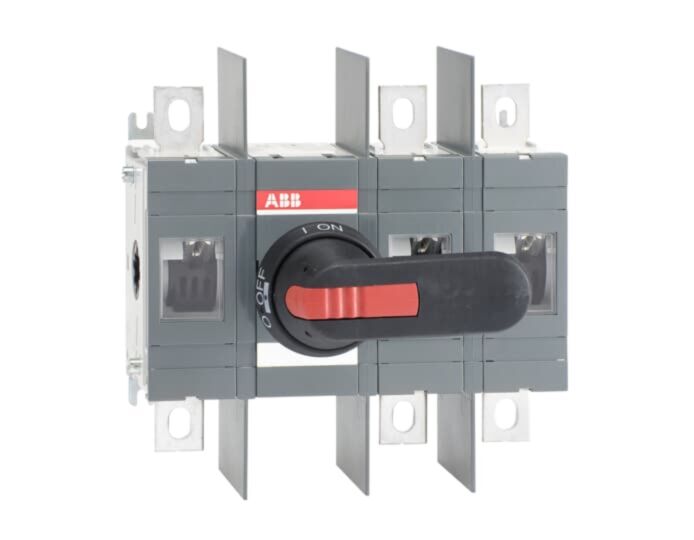

1SCA162980R1001 ABB OTHV315E12W 3 Pole 800VAC to 1000VAC 315A Switch Disconnector
MPN: 1SCA162980R1001
Alt. SKU: OTHV315E12W
Why Choose the OTHV315E12W [1SCA162980R1001]
The OTHV-series is a 3-pole, front-operated base-mounted switch disconnector designed for use in 800 to 1000 VAC systems. It provides reliable isolation and switching capabilities in industrial and commercial electrical installations. Please note that the shaft and handle are supplied separately and must be ordered in addition to the unit.
Technical Specification
- Function: 3-pole front operated base mounted switch disconnector.
- Rated Operational Voltage: 800…1000 V AC.
- Rated Operational Current: 315 A (AC-21A and AC-22A at 800 and 1000 V AC), 200 A (AC-23A at 800 V AC).
- Rated Insulation Voltage: 1000 V (IEC 60947-1).
- Rated Impulse Withstand Voltage: 12 kV.
- Degree of Protection: Front IP00.
- Contact Configuration: 3 poles.
- Terminal Type and Width: Lug terminals, 25 mm wide.
- Mechanical Durability: 16,000 operations.
- Tightening Torque: 30 to 44 N·m (IEC 60947-1).
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated operational voltage of the OTHV-series switch disconnector?
The rated operational voltage is 800 to 1000 V AC.
What is the maximum rated operational current for this switch disconnector?
The maximum rated operational current is 315 A for AC-21A and AC-22A at 800 and 1000 V AC.
What type of terminals does the OTHV-series switch disconnector use?
It uses lug terminals that are 25 mm wide.
What is the degree of protection for this switch disconnector?
The degree of protection is IP00.
What is the mechanical durability of the OTHV-series switch disconnector?
The mechanical durability is rated for 16,000 operations.
What is the tightening torque range for this switch disconnector?
The tightening torque range is 30 to 44 N·m.
Is there any conformity information available for the OTHV-series switch disconnector?
See the manufacturer's data sheet for standards and approvals.
| Alternative Product SKU | OTHV315E12W |
|---|---|
| Manufacturer Part Number | 1SCA162980R1001 |
| Manufacturer | ABB |
| Barcode | 6417019929323 |
| Number of Poles | 3 Pole |
| Number of switches | 1 |
| Rated operating voltage | 1000 |
| Device construction | Complete device in housing |
| Suitable for distribution board installation | Yes |
| Type of control element | Other |
| Colour control element | Black |
| Rated permanent current Iu | 315A |
| Voltage | 800-1000VAC |
| Degree of protection (IP) | IP00 |
| Degree of protection (NEMA) | Other |
| Type of electric connection | Bolt connection |
| Packed Quantity | 1 |
| Height | 220mm |
| Width | 221mm |
| Depth | 107mm |
| HS Code | 85365080 |
| Country of Manufacture | Finland |
