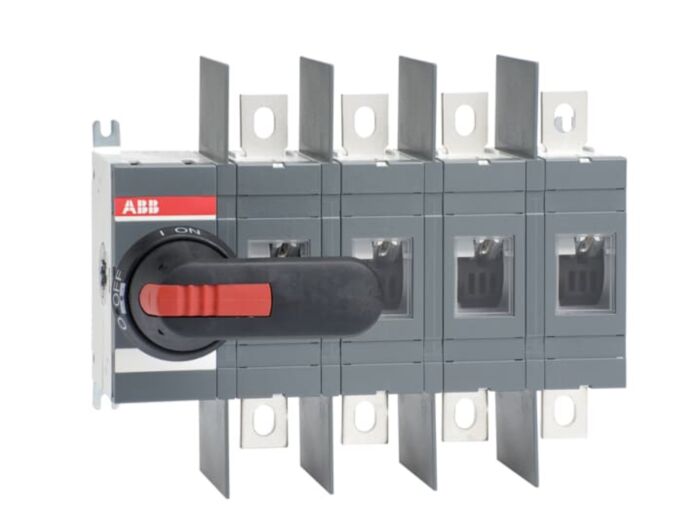

1SCA162979R1001 ABB OTHV315E04WP 4 Pole 800VAC to 1000VAC 315A Switch Disconnector
MPN: 1SCA162979R1001
Alt. SKU: OTHV315E04WP
Why Choose the OTHV315E04WP [1SCA162979R1001]
The OTHV-series 4-pole front-operated base-mounted switch disconnector is designed for use in 800 to 1000 VAC electrical systems. It features a robust shaft and handle, included for straightforward installation and reliable operation. This switch disconnector ensures secure isolation and is suitable for a range of industrial and commercial applications requiring high-voltage switching.
Technical Specification
- Function: 4-pole front operated base mounted switch disconnector.
- Rated Operational Voltage: 1000 V AC.
- Rated Operational Current: 315 A (AC-21A and AC-22A at 800…1000 V AC), 200 A (AC-23A at 800 V AC).
- Conventional Thermal Current (Ith, The): 315 A.
- Rated Impulse Withstand Voltage (Uimp): 12 kV.
- Degree of Protection: Front IP00.
- Terminal Type and Width: Lug terminals, 25 mm wide.
- Mechanical Durability: 16,000 operations.
- Rated Short-Circuit Making Capacity (Icm): 65 kA at 1000 V.
- Rated Short-time Withstand Current (Icw): 15 kA for 1 second.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated operational voltage of the OTHV-series switch disconnector?
The rated operational voltage is 1000 V AC.
What is the maximum rated operational current for this switch disconnector?
The maximum rated operational current is 315 A for AC-21A and AC-22A at 800…1000 V AC.
What type of terminals does the OTHV-series switch disconnector use?
It uses lug terminals that are 25 mm wide.
What is the mechanical durability of the OTHV-series switch disconnector?
The mechanical durability is rated for 16,000 operations.
What is the degree of protection for this switch disconnector?
The degree of protection is IP00.
What is the rated short-circuit making capacity of the OTHV-series?
The rated short-circuit making capacity is 65 kA at 1000 V.
Is there any conformity information available for this product?
See the manufacturer's data sheet for standards and approvals.
| Alternative Product SKU | OTHV315E04WP |
|---|---|
| Manufacturer Part Number | 1SCA162979R1001 |
| Manufacturer | ABB |
| Barcode | 6417019929316 |
| Number of Poles | 4 Pole |
| Max. rated operation voltage Ue AC | 1000V |
| Number of switches | 1 |
| Rated operating voltage | 1000 |
| Device construction | Complete device in housing |
| Suitable for distribution board installation | Yes |
| Type of control element | Other |
| Colour control element | Black |
| Rated permanent current Iu | 315A |
| Voltage | 800-1000VAC |
| Degree of protection (IP) | IP00 |
| Degree of protection (NEMA) | Other |
| Type of electric connection | Bolt connection |
| Packed Quantity | 1 |
| Height | 220mm |
| Width | 275mm |
| Depth | 107mm |
| HS Code | 85365080 |
| Country of Manufacture | Finland |
