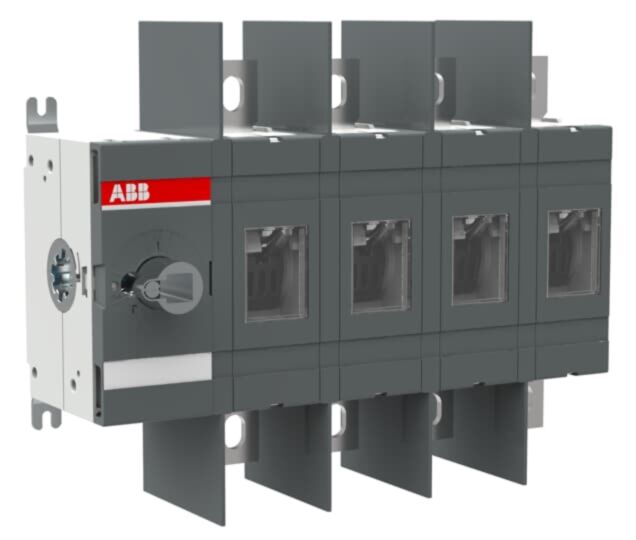

1SCA162978R1001 ABB OTHV315E04W 4 Pole 800VAC to 1000VAC 315A Switch Disconnector
MPN: 1SCA162978R1001
Alt. SKU: OTHV315E04W
Why Choose the OTHV315E04W [1SCA162978R1001]
The OTHV-series 4-pole front-operated base-mounted switch disconnector is designed for use in 800 to 1000 VAC systems. It provides reliable isolation and switching capabilities for industrial and commercial electrical installations. Please note that the shaft and handle are supplied separately.
Technical Specification
- Function: 4-pole front operated base mounted switch disconnector.
- Rated Operational Current (AC-23A): 800 V AC - 200 A; 1000 V AC - 315 A.
- Rated Insulation Voltage (Ui): 1000 V (IEC 60947-1).
- Rated Impulse Withstand Voltage (Uimp): 12 kV.
- Degree of Protection: Front IP00.
- Terminal Type and Size: Lug terminals, 25 mm width.
- Mechanical Durability: 16,000 operations.
- Rated Short-Circuit Making Capacity (Icm): 65 kA at 1000 V.
- Tightening Torque: 30–44 N·m (IEC 60947-1).
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated operational current for this switch disconnector?
The rated operational current is 200 A at 800 V AC and 315 A at 1000 V AC.
What is the degree of protection for this product?
The degree of protection is Front IP00.
What type of terminals does this switch disconnector use?
This switch disconnector uses lug terminals with a width of 25 mm.
What is the mechanical durability of the switch disconnector?
The mechanical durability is rated for 16,000 operations.
What is the rated short-circuit making capacity?
The rated short-circuit making capacity is 65 kA at 1000 V.
What is the tightening torque required for installation?
The tightening torque required is between 30–44 N·m.
What standards and approvals does this product conform to?
See the manufacturer's data sheet for standards and approvals.
| Alternative Product SKU | OTHV315E04W |
|---|---|
| Manufacturer Part Number | 1SCA162978R1001 |
| Manufacturer | ABB |
| Barcode | 6417019929309 |
| Number of Poles | 4 Pole |
| Number of switches | 1 |
| Rated operating voltage | 1000 |
| Device construction | Complete device in housing |
| Suitable for distribution board installation | Yes |
| Type of control element | Other |
| Rated permanent current Iu | 315A |
| Voltage | 800-1000VAC |
| Degree of protection (IP) | IP00 |
| Degree of protection (NEMA) | Other |
| Type of electric connection | Bolt connection |
| Packed Quantity | 1 |
| Height | 220mm |
| Width | 275mm |
| Depth | 107mm |
| HS Code | 85365080 |
| Country of Manufacture | Finland |
