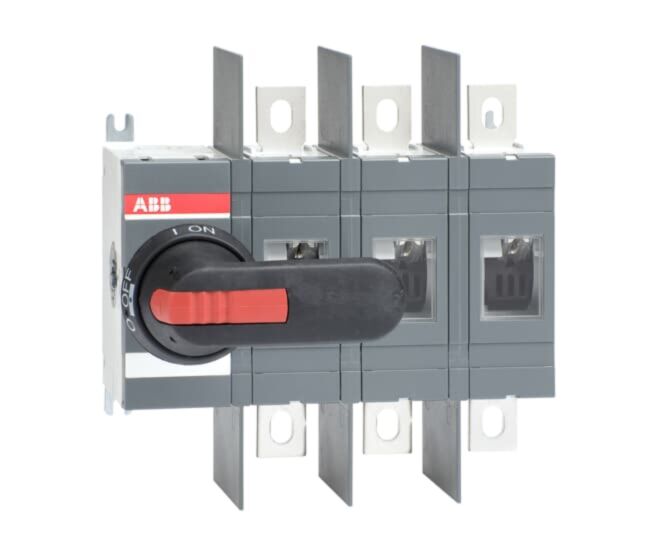

1SCA162977R1001 ABB OTHV315E03WP 3 Pole 800VAC to 1000VAC 315A Switch Disconnector
MPN: 1SCA162977R1001
Alt. SKU: OTHV315E03WP
£485.22
£404.35
Why Choose the OTHV315E03WP [1SCA162977R1001]
The OTHV-series 3-pole front-operated base-mounted switch disconnector is designed for use in 800 to 1000VAC systems. It features a robust shaft and handle, both included, ensuring reliable operation and straightforward installation in industrial and commercial electrical setups.
Technical Specification
- Function: 3-pole front operated base mounted switch disconnector.
- Rated Operational Current: 315 A at 800–1000 VAC (AC-21A, AC-22A); 200 A at 800 VAC (AC-23A).
- Rated Operational Voltage: 1000 V AC.
- Rated Insulation Voltage (Ui): 1000 V (IEC 60947-1).
- Rated Impulse Withstand Voltage (Uimp): 12 kV.
- Degree of Protection: Front IP00.
- Terminal Type: Lug terminals, 25 mm width.
- Tightening Torque: 30–44 N·m (IEC 60947-1).
- Mechanical Durability: 16,000 operations.
- Rated Short-Circuit Making Capacity (Icm): 65 kA at 1000 V.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated operational current of the OTHV-series switch disconnector?
The rated operational current is 315 A at 800–1000 VAC for AC-21A and AC-22A, and 200 A at 800 VAC for AC-23A.
What is the maximum rated operational voltage for this product?
The maximum rated operational voltage is 1000 V AC.
What type of terminals does the OTHV-series switch disconnector use?
It uses lug terminals with a width of 25 mm.
What is the degree of protection for the OTHV-series switch disconnector?
The degree of protection is IP00.
What is the mechanical durability of the switch disconnector?
The mechanical durability is rated for 16,000 operations.
What is the rated short-circuit making capacity of this switch disconnector?
The rated short-circuit making capacity is 65 kA at 1000 V.
What standards and approvals does the OTHV-series comply with?
See the manufacturer's data sheet for standards and approvals.
| Alternative Product SKU | OTHV315E03WP |
|---|---|
| Manufacturer Part Number | 1SCA162977R1001 |
| Manufacturer | ABB |
| Barcode | 6417019929293 |
| Number of Poles | 3 Pole |
| Max. rated operation voltage Ue AC | 1000V |
| Number of switches | 1 |
| Rated operating voltage | 1000 |
| Device construction | Complete device in housing |
| Suitable for distribution board installation | Yes |
| Type of control element | Other |
| Colour control element | Black |
| Rated permanent current Iu | 315A |
| Voltage | 800-1000VAC |
| Degree of protection (IP) | IP00 |
| Degree of protection (NEMA) | Other |
| Type of electric connection | Bolt connection |
| Packed Quantity | 1 |
| Height | 220mm |
| Width | 221mm |
| Depth | 107mm |
| HS Code | 85365080 |
| Country of Manufacture | Finland |
