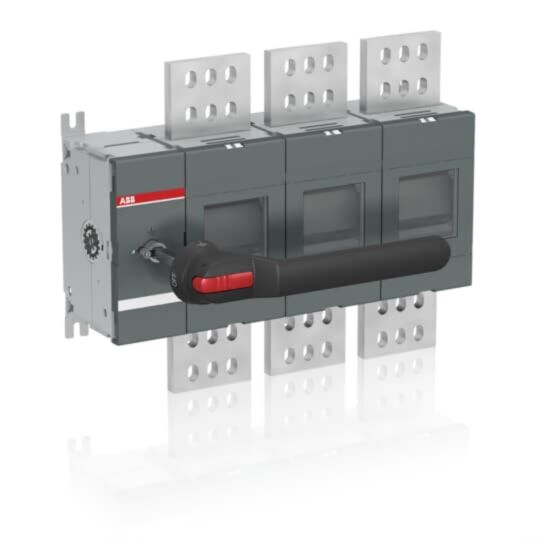

1SCA162965R1001 ABB OTHV2500E03P 3 Pole 800VAC to 1000VAC 2500A Switch Disconnector
MPN: 1SCA162965R1001
Alt. SKU: OTHV2500E03P
Why Choose the OTHV2500E03P [1SCA162965R1001]
The OTHV-series 3-pole front-operated base-mounted switch disconnector is designed for use in 800VAC systems. It features a robust shaft and handle for reliable operation, ensuring secure isolation in industrial and commercial electrical installations.
Technical Specification
- Function: 3-pole front operated base mounted switch disconnector.
- Rated Operational Voltage: 1000 V AC.
- Rated Operational Current (AC-22B, 800 V): 2500 A.
- Rated Impulse Withstand Voltage (Uimp): 12 kV.
- Rated Short-Circuit Making Capacity (Icm, 1000 V): 176 kA.
- Degree of Protection: Front IP00.
- Terminal Type and Size: Lug terminals, 100 mm width, tightening torque 50–75 N·m.
- Mechanical Durability: 6000 operations.
- Handle: Black pistol type handle included, length 274 mm.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated operational voltage of the OTHV-series switch disconnector?
The rated operational voltage is 1000 V AC.
What is the maximum rated operational current for this switch disconnector?
The maximum rated operational current is 2500 A (AC-22B, 800 V).
What is the degree of protection for the OTHV-series switch disconnector?
The degree of protection is Front IP00.
What type of terminals does the switch disconnector use?
It uses lug terminals with a width of 100 mm and a tightening torque of 50–75 N·m.
How many mechanical operations can the switch disconnector endure?
The mechanical durability is rated for 6000 operations.
Is a handle included with the switch disconnector?
Yes, a black pistol type handle, 274 mm in length, is included.
What are the standards and approvals for this product?
See the manufacturer's data sheet for standards and approvals.
| Alternative Product SKU | OTHV2500E03P |
|---|---|
| Manufacturer Part Number | 1SCA162965R1001 |
| Manufacturer | ABB |
| Barcode | 6417019929170 |
| Number of Poles | 3 Pole |
| Max. rated operation voltage Ue AC | 1000V |
| Number of switches | 1 |
| Rated operating voltage | 1000V |
| Device construction | Complete device in housing |
| Suitable for distribution board installation | Yes |
| Type of control element | Other |
| Colour control element | Black |
| Rated permanent current Iu | 2500A |
| Voltage | 800-1000VAC |
| Degree of protection (IP) | IP00 |
| Degree of protection (NEMA) | Other |
| Type of electric connection | Bolt connection |
| Packed Quantity | 1 |
| Height | 376.5mm |
| Width | 472.5mm |
| Depth | 145.5mm |
| HS Code | 85365080 |
| Country of Manufacture | Finland |
