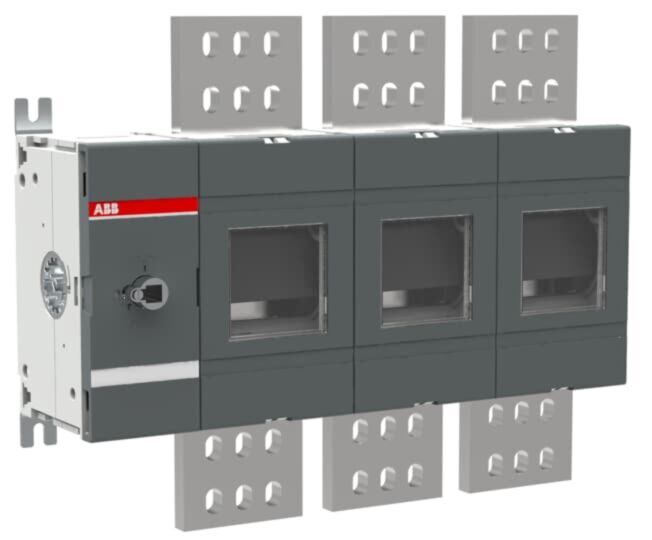

1SCA162964R1001 ABB OTHV2500E03 3 Pole 800VAC to 1000VAC 2500A Switch Disconnector
MPN: 1SCA162964R1001
Alt. SKU: OTHV2500E03
Why Choose the OTHV2500E03 [1SCA162964R1001]
The OTHV-series 3-pole front-operated base-mounted switch disconnector is designed for use in 800VAC electrical systems. It provides reliable isolation and switching capabilities for industrial and commercial installations. Please note that the shaft and handle are supplied separately and must be ordered in addition to the unit.
Technical Specification
- Function: 3-pole front operated base mounted switch disconnector.
- Rated Operational Voltage: 800 VAC.
- Rated Operational Current (AC-21B/AC-22B): 2500 A.
- Number of Poles: 3P.
- Rated Insulation Voltage (U i ): 1000 V (IEC 60947-1).
- Rated Impulse Withstand Voltage (U imp ): 12 kV.
- Degree of Protection: Front IP00.
- Terminal Type: Lug terminals, 100 mm width.
- Mechanical Durability: 6000 operations.
- Tightening Torque: 50–75 N·m (IEC 60947-1).
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated operational voltage of the OTHV-series switch disconnector?
The rated operational voltage is 800 VAC.
What is the maximum rated operational current for this switch disconnector?
The maximum rated operational current is 2500 A (AC-21B/AC-22B).
How many poles does the OTHV-series switch disconnector have?
The switch disconnector has 3 poles (3P).
What is the degree of protection for this product?
The degree of protection is Front IP00.
What type of terminals does the OTHV-series switch disconnector use?
It uses lug terminals with a width of 100 mm.
What is the mechanical durability of the switch disconnector?
The mechanical durability is rated for 6000 operations.
What tightening torque is required for installation?
The required tightening torque is between 50–75 N·m (IEC 60947-1).
| Alternative Product SKU | OTHV2500E03 |
|---|---|
| Manufacturer Part Number | 1SCA162964R1001 |
| Manufacturer | ABB |
| Barcode | 6417019929163 |
| Number of Poles | 3 Pole |
| Number of switches | 1 |
| Rated operating voltage | 1000V |
| Device construction | Complete device in housing |
| Suitable for distribution board installation | Yes |
| Type of control element | Other |
| Rated permanent current Iu | 2500A |
| Voltage | 800-1000VAC |
| Degree of protection (IP) | IP00 |
| Degree of protection (NEMA) | Other |
| Type of electric connection | Bolt connection |
| Packed Quantity | 1 |
| Height | 376.5mm |
| Width | 472.5mm |
| Depth | 145.5mm |
| HS Code | 85365080 |
| Country of Manufacture | Finland |
