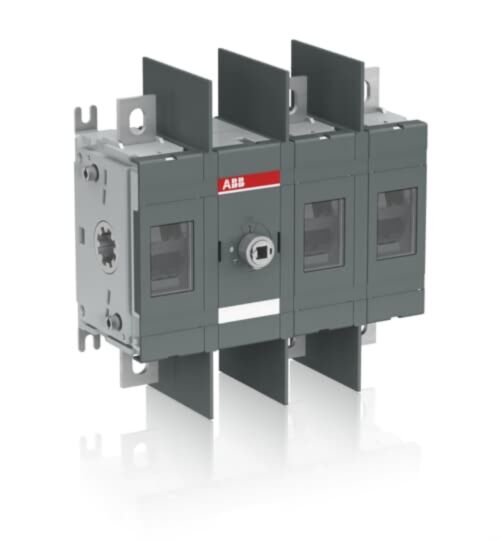

1SCA162962R1001 ABB OTHV200E12W 3 Pole 800VAC to 1000VAC 200A Switch Disconnector
MPN: 1SCA162962R1001
Alt. SKU: OTHV200E12W
Why Choose the OTHV200E12W [1SCA162962R1001]
The OTHV-series 3-pole front-operated base-mounted switch disconnector is designed for use in 800 to 1000 VAC electrical systems. It provides reliable isolation and switching capabilities in industrial and commercial installations. Please note that the shaft and handle are supplied separately and must be ordered individually to complete the assembly.
Technical Specification
- Function: 3-pole front operated base mounted switch disconnector.
- Rated Operational Voltage: Up to 1000 VAC.
- Rated Operational Current: 200 A (AC-21A and AC-22A at 800/1000 V AC), 135 A (AC-23A at 800/1000 V AC).
- Rated Insulation Voltage (Ui): 1000 V (IEC 60947-1).
- Rated Impulse Withstand Voltage (Uimp): 12 kV.
- Degree of Protection: Front IP00.
- Terminal Type: Lug terminals, 20 mm width.
- Mechanical Durability: 20,000 operations.
- Short-Circuit Making Capacity (Icm): 30 kA at 1000 V.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated operational voltage of the OTHV-series switch disconnector?
The rated operational voltage is up to 1000 VAC.
What is the maximum rated operational current for this switch disconnector?
The maximum rated operational current is 200 A for AC-21A and AC-22A at 800/1000 V AC, and 135 A for AC-23A at the same voltage.
What type of terminals does the OTHV-series switch disconnector use?
It uses lug terminals with a width of 20 mm.
What is the degree of protection for this product?
The degree of protection is IP00.
How many mechanical operations is the switch disconnector rated for?
It is rated for 20,000 mechanical operations.
What is the short-circuit making capacity of the OTHV-series switch disconnector?
The short-circuit making capacity is 30 kA at 1000 V.
What standards and approvals does this product conform to?
See the manufacturer's data sheet for standards and approvals.
| Alternative Product SKU | OTHV200E12W |
|---|---|
| Manufacturer Part Number | 1SCA162962R1001 |
| Manufacturer | ABB |
| Barcode | 6417019929149 |
| Number of Poles | 3 Pole |
| Number of switches | 1 |
| Rated operating voltage | 1000 |
| Device construction | Complete device in housing |
| Suitable for distribution board installation | Yes |
| Type of control element | Other |
| Rated permanent current Iu | 200A |
| Voltage | 800-1000VAC |
| Degree of protection (IP) | IP00 |
| Degree of protection (NEMA) | Other |
| Type of electric connection | Bolt connection |
| Packed Quantity | 1 |
| Height | 170mm |
| Width | 174.5mm |
| Depth | 82.5mm |
| HS Code | 85365080 |
| Country of Manufacture | Finland |
