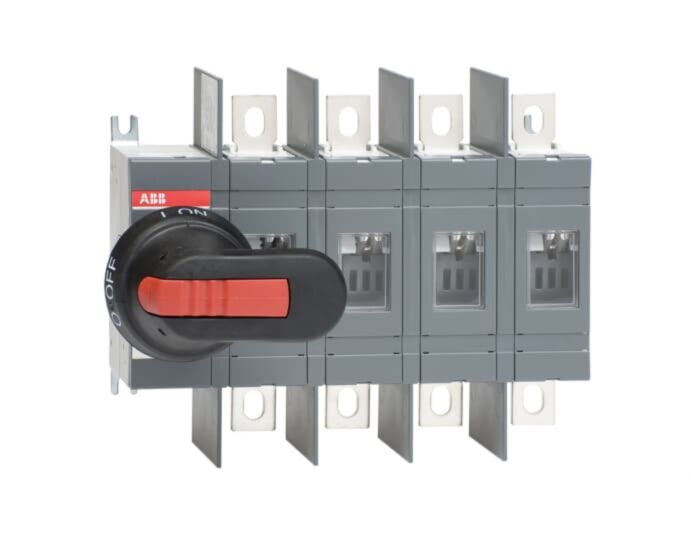

1SCA162961R1001 ABB OTHV200E04WP 4 Pole 800VAC to 1000VAC 200A Switch Disconnector
MPN: 1SCA162961R1001
Alt. SKU: OTHV200E04WP
Why Choose the OTHV200E04WP [1SCA162961R1001]
The OTHV-series 4-pole front-operated base-mounted switch disconnector is designed for use in 800 to 1000 VAC systems. It features a robust shaft and handle, both included, ensuring reliable operation and straightforward installation in industrial and commercial electrical installations.
Technical Specification
- Function: 4-pole front operated base mounted switch disconnector with simultaneous switched fourth pole.
- Rated Operational Voltage: Up to 1000 V AC.
- Rated Operational Current: 200 A at 800…1000 V AC (AC-21A and AC-22A); 135 A at 800…1000 V AC (AC-23A).
- Rated Insulation Voltage: 1000 V according to IEC 60947-1.
- Rated Impulse Withstand Voltage: 12 kV.
- Degree of Protection: Front IP00.
- Terminal Type and Size: Lug terminals, 20 mm width, tightening torque 15–22 N·m.
- Mechanical Durability: 20,000 operations.
- Short-Circuit Ratings: Making capacity 30 kA at 1000 V; withstand current 8 kA for 1 second.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the maximum operational voltage for the OTHV-series switch disconnector?
The maximum operational voltage is up to 1000 V AC.
What is the rated operational current for this switch disconnector?
The rated operational current is 200 A at 800…1000 V AC (AC-21A and AC-22A) and 135 A at 800…1000 V AC (AC-23A).
What type of terminals does the OTHV-series switch disconnector use?
It uses lug terminals with a width of 20 mm and a tightening torque of 15–22 N·m.
What is the degree of protection for this switch disconnector?
The degree of protection is Front IP00.
How many operations can the switch disconnector endure mechanically?
The mechanical durability is rated for 20,000 operations.
What are the short-circuit ratings for the OTHV-series switch disconnector?
The making capacity is 30 kA at 1000 V, and the withstand current is 8 kA for 1 second.
Is there any conformity information available for this product?
See the manufacturer's data sheet for standards and approvals.
| Alternative Product SKU | OTHV200E04WP |
|---|---|
| Manufacturer Part Number | 1SCA162961R1001 |
| Manufacturer | ABB |
| Barcode | 6417019929132 |
| Number of Poles | 4 Pole |
| Max. rated operation voltage Ue AC | 1000V |
| Number of switches | 1 |
| Rated operating voltage | 1000 |
| Device construction | Complete device in housing |
| Suitable for distribution board installation | Yes |
| Type of control element | Other |
| Colour control element | Black |
| Rated permanent current Iu | 200A |
| Voltage | 800-1000VAC |
| Degree of protection (IP) | IP00 |
| Degree of protection (NEMA) | Other |
| Type of electric connection | Bolt connection |
| Packed Quantity | 1 |
| Height | 170mm |
| Width | 212.5mm |
| Depth | 82.5mm |
| HS Code | 85365080 |
| Country of Manufacture | Finland |
