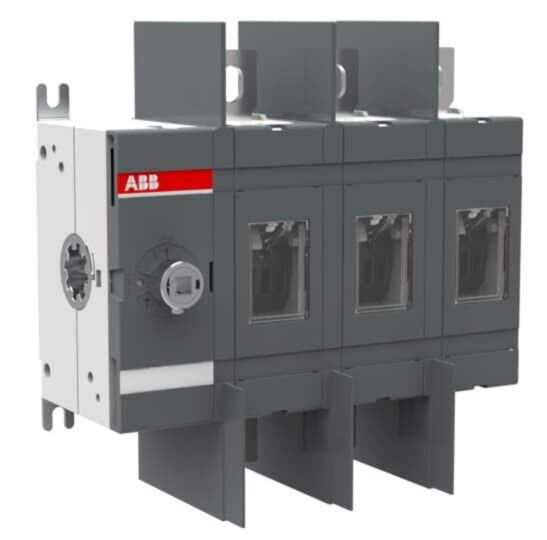

1SCA162958R1001 ABB OTHV200E03W 3 Pole 800VAC to 1000VAC 200A Switch Disconnector
MPN: 1SCA162958R1001
Alt. SKU: OTHV200E03W
Why Choose the OTHV200E03W [1SCA162958R1001]
The OTHV-series is a 3-pole, front-operated base-mounted switch disconnector designed for use in 800 to 1000 VAC systems. Please note that the shaft and handle are supplied separately.
Technical Specification
- Function: 3-pole front operated base mounted switch disconnector.
- Rated Operational Current: 200 A at 800…1000 V AC (AC-21A and AC-22A).
- Contact Configuration: 3 poles (3P).
- Rated Insulation Voltage (Ui): 1000 V AC (IEC 60947-1).
- Rated Impulse Withstand Voltage (Uimp): 12 kV.
- Degree of Protection: Front IP00.
- Terminal Type: Lug terminals, 20 mm width.
- Tightening Torque: 15 to 22 N·m (IEC 60947-1).
- Mechanical Durability: 20,000 operations.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated operational current of the OTHV-series switch disconnector?
The rated operational current is 200 A at 800…1000 V AC.
What is the degree of protection for this switch disconnector?
The degree of protection is IP00.
What type of terminals does the OTHV-series switch disconnector use?
It uses lug terminals with a width of 20 mm.
What is the mechanical durability of this product?
The mechanical durability is rated for 20,000 operations.
Are the shaft and handle included with the switch disconnector?
No, the shaft and handle are not included.
What standards does the OTHV-series conform to?
See the manufacturer's data sheet for standards and approvals.
| Alternative Product SKU | OTHV200E03W |
|---|---|
| Manufacturer Part Number | 1SCA162958R1001 |
| Manufacturer | ABB |
| Barcode | 6417019929101 |
| Number of Poles | 3 Pole |
| Number of switches | 1 |
| Rated operating voltage | 1000 |
| Device construction | Complete device in housing |
| Suitable for distribution board installation | Yes |
| Type of control element | Other |
| Rated permanent current Iu | 200A |
| Voltage | 800-1000VAC |
| Degree of protection (IP) | IP00 |
| Degree of protection (NEMA) | Other |
| Type of electric connection | Bolt connection |
| Packed Quantity | 1 |
| Height | 170mm |
| Width | 169.5mm |
| Depth | 82.5mm |
| HS Code | 85365080 |
| Country of Manufacture | Finland |
