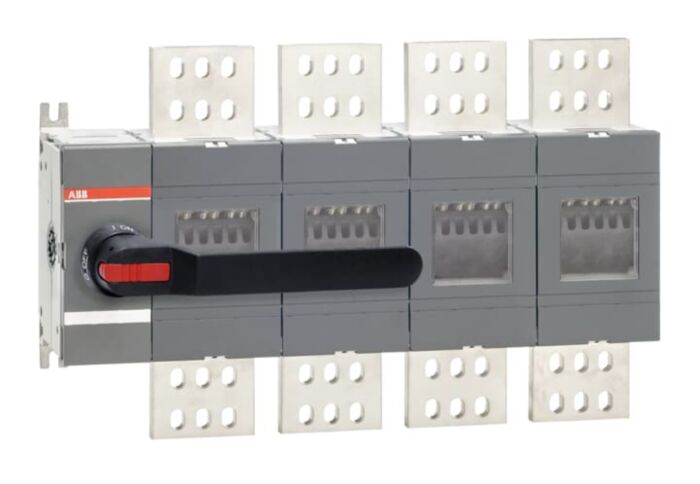

1SCA162957R1001 ABB OTHV2000E04P 4 Pole 800VAC to 1000VAC 2000A Switch Disconnector
MPN: 1SCA162957R1001
Alt. SKU: OTHV2000E04P
Why Choose the OTHV2000E04P [1SCA162957R1001]
The OTHV-series 4-pole front-operated base-mounted switch disconnector is designed for use in 800VAC systems. It features a robust shaft and handle, both included, ensuring reliable operation and ease of installation in industrial and commercial electrical installations.
Technical Specification
- Function: 4-pole front operated base mounted switch disconnector.
- Rated Operational Current: 2000 A at 800 V AC (AC-21B and AC-22B).
- Rated Operational Voltage: Main circuit 1000 V.
- Rated Insulation Voltage: 1000 V (IEC 60947-1).
- Rated Impulse Withstand Voltage: 12 kV.
- Degree of Protection: Front IP00.
- Terminal Type and Size: Lug terminals, 100 mm width, tightening torque 50–75 N·m.
- Mechanical Durability: 6000 operations.
- Rated Short-Circuit Making Capacity: 176 kA at 1000 V.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated operational current of the OTHV-series switch disconnector?
The rated operational current is 2000 A at 800 V AC (AC-21B and AC-22B).
What is the maximum rated operational voltage for this product?
The maximum rated operational voltage for the main circuit is 1000 V.
What type of terminals does the OTHV-series switch disconnector use?
It uses lug terminals with a width of 100 mm and a tightening torque of 50–75 N·m.
What is the degree of protection for this switch disconnector?
The degree of protection is IP00.
How many operations can the switch disconnector endure mechanically?
The mechanical durability is rated for 6000 operations.
What is the rated short-circuit making capacity?
The rated short-circuit making capacity is 176 kA at 1000 V.
What standards and approvals does this product conform to?
See the manufacturer's data sheet for standards and approvals.
| Alternative Product SKU | OTHV2000E04P |
|---|---|
| Manufacturer Part Number | 1SCA162957R1001 |
| Manufacturer | ABB |
| Barcode | 6417019929095 |
| Number of Poles | 4 Pole |
| Max. rated operation voltage Ue AC | 1000V |
| Number of switches | 1 |
| Rated operating voltage | 1000V |
| Device construction | Complete device in housing |
| Suitable for distribution board installation | Yes |
| Type of control element | Other |
| Colour control element | Black |
| Rated permanent current Iu | 2000A |
| Voltage | 800-1000VAC |
| Degree of protection (IP) | IP00 |
| Degree of protection (NEMA) | Other |
| Type of electric connection | Bolt connection |
| Packed Quantity | 1 |
| Height | 376.5mm |
| Width | 598.5mm |
| Depth | 145.5mm |
| HS Code | 85365080 |
| Country of Manufacture | Finland |
