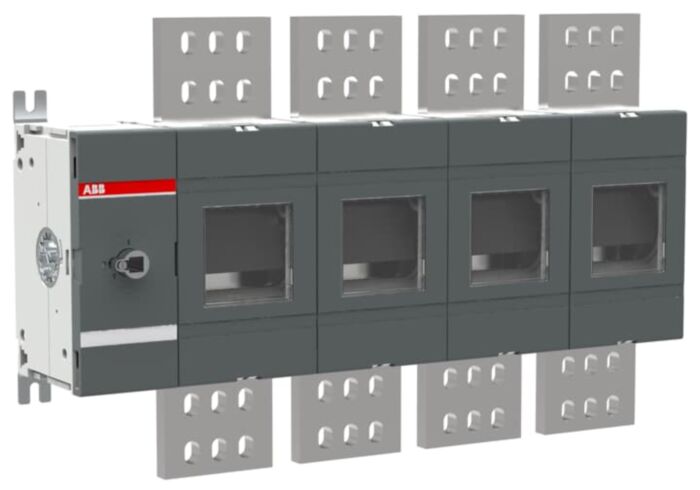

1SCA162956R1001 ABB OTHV2000E04 4 Pole 800VAC to 1000VAC 2000A Switch Disconnector
MPN: 1SCA162956R1001
Alt. SKU: OTHV2000E04
Why Choose the OTHV2000E04 [1SCA162956R1001]
The OTHV-series 4-pole front-operated base-mounted switch disconnector is designed for use in 800VAC electrical systems. It provides reliable isolation and switching capabilities for industrial and commercial applications. Please note that the shaft and handle are supplied separately and must be ordered in addition to the unit.
Technical Specification
- Function: 4-pole front operated base mounted switch disconnector.
- Rated Operational Current AC-22B: 2000 A at 800 V AC.
- Rated Insulation Voltage (Ui): 1000 V (IEC 60947-1).
- Rated Impulse Withstand Voltage (Uimp): 12 kV.
- Degree of Protection: Front IP00.
- Terminal Type: Lug terminals, 100 mm width.
- Tightening Torque: 50–75 N·m (IEC 60947-1).
- Mechanical Durability: 6000 operations.
- Short-Circuit Making Capacity (Icm): 176 kA at 1000 V.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated operational current of the OTHV-series switch disconnector?
The rated operational current is 2000 A at 800 V AC.
What is the degree of protection for this switch disconnector?
The degree of protection is Front IP00.
What type of terminals does the OTHV-series use?
It uses lug terminals with a width of 100 mm.
What is the tightening torque for the terminals?
The tightening torque is between 50–75 N·m as per IEC 60947-1.
What is the mechanical durability of the switch disconnector?
The mechanical durability is rated for 6000 operations.
What is the short-circuit making capacity of the OTHV-series?
The short-circuit making capacity is 176 kA at 1000 V.
Are there any conformity standards for this product?
See the manufacturer's data sheet for standards and approvals.
| Alternative Product SKU | OTHV2000E04 |
|---|---|
| Manufacturer Part Number | 1SCA162956R1001 |
| Manufacturer | ABB |
| Barcode | 6417019929088 |
| Number of Poles | 4 Pole |
| Number of switches | 1 |
| Rated operating voltage | 1000V |
| Device construction | Complete device in housing |
| Suitable for distribution board installation | Yes |
| Type of control element | Other |
| Rated permanent current Iu | 2000A |
| Voltage | 800-1000VAC |
| Degree of protection (IP) | IP00 |
| Degree of protection (NEMA) | Other |
| Type of electric connection | Bolt connection |
| Packed Quantity | 1 |
| Height | 376.5mm |
| Width | 598.5mm |
| Depth | 145.5mm |
| HS Code | 85365080 |
| Country of Manufacture | Finland |
