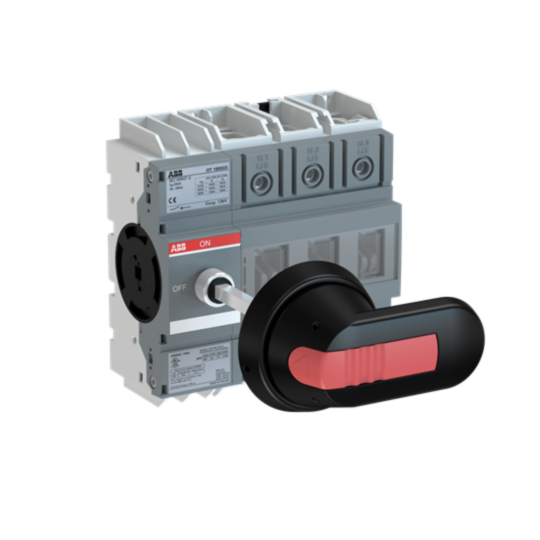

1SCA162953R1001 ABB OTHV160G03P 3 Pole 800VAC to 1000VAC 160A Switch Disconnector
MPN: 1SCA162953R1001
Alt. SKU: OTHV160G03P
Why Choose the OTHV160G03P [1SCA162953R1001]
The OTHV-series 3-pole front-operated base-mounted switch disconnector is designed for use in 800 to 1000 VAC electrical systems. It features a robust shaft and handle, both included, ensuring reliable operation and ease of installation in industrial and commercial switchgear applications.
Technical Specification
- Function: 3-pole front operated base mounted switch disconnector.
- Rated Operational Voltage: 1000 V AC.
- Rated Operational Current AC-21A: 160 A (800 V AC), 125 A (1000 V AC).
- Rated Operational Current AC-22A: 125 A (800 V AC), 100 A (1000 V AC).
- Rated Insulation Voltage (Ui): 1000 V (IEC 60947-1).
- Rated Impulse Withstand Voltage (Uimp): 12 kV.
- Degree of Protection: Front IP20.
- Cable Cross-Section Range: Copper 10 to 70 mm².
- Terminal Type: Screw terminals, tightening torque 6 N·m.
- Mechanical Durability: 20,000 operations.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated operational voltage of the OTHV-series switch disconnector?
The rated operational voltage is 1000 V AC.
What is the maximum rated operational current for AC-21A?
The maximum rated operational current for AC-21A is 160 A at 800 V AC and 125 A at 1000 V AC.
What is the cable cross-section range for this switch disconnector?
The cable cross-section range is from 10 to 70 mm² for copper cables.
What is the degree of protection for the OTHV-series switch disconnector?
The degree of protection is IP20.
How many mechanical operations can the switch disconnector endure?
The mechanical durability is rated for 20,000 operations.
What type of terminals does the OTHV-series switch disconnector use?
The switch disconnector uses screw terminals with a tightening torque of 6 N·m.
What standards and approvals does this product conform to?
See the manufacturer's data sheet for standards and approvals.
| Alternative Product SKU | OTHV160G03P |
|---|---|
| Manufacturer Part Number | 1SCA162953R1001 |
| Manufacturer | ABB |
| Barcode | 6417019929057 |
| Number of Poles | 3 Pole |
| Max. rated operation voltage Ue AC | 1000V |
| Number of switches | 1 |
| Rated operating voltage | 1000 |
| Device construction | Complete device in housing |
| Suitable for distribution board installation | Yes |
| Type of control element | Other |
| Colour control element | Black |
| Rated permanent current Iu | 160A |
| Voltage | 800-1000VAC |
| Degree of protection (IP) | IP20 |
| Degree of protection (NEMA) | Other |
| Type of electric connection | Screw connection |
| Packed Quantity | 1 |
| Height | 130mm |
| Width | 123mm |
| Depth | 73mm |
| HS Code | 85365080 |
| Country of Manufacture | Finland |
