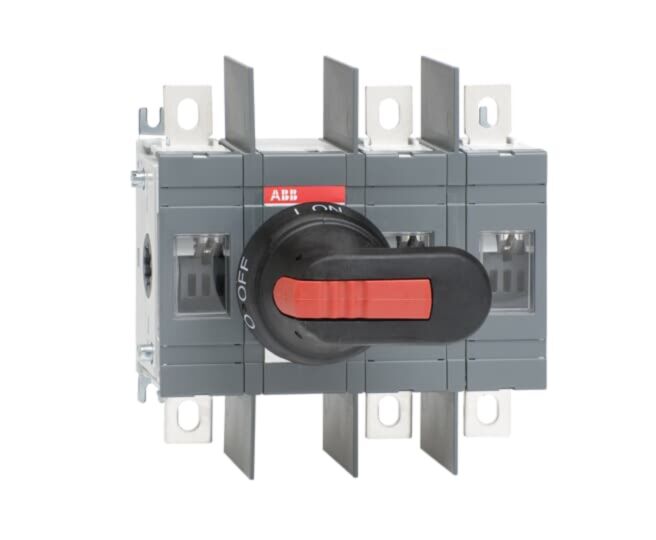

1SCA162950R1001 ABB OTHV160E12W 3 Pole 800VAC to 1000VAC 200A Switch Disconnector
MPN: 1SCA162950R1001
Alt. SKU: OTHV160E12W
Why Choose the OTHV160E12W [1SCA162950R1001]
The OTHV-series 3-pole front-operated base-mounted switch disconnector is designed for use in 800 to 1000 VAC electrical systems. It provides reliable isolation and switching capabilities for industrial and commercial applications. Please note that the shaft and handle are supplied separately and must be ordered in addition to the switch disconnector.
Technical Specification
- Function: 3-pole front operated base mounted switch disconnector.
- Voltage Rating: Suitable for 800…1000 V AC.
- Current Ratings: Rated operational current AC-21A and AC-22A: 160 A; AC-23A: 135 A.
- Insulation Voltage (Ui): 1000 V according to IEC 60947-1.
- Impulse Withstand Voltage (Uimp): 12 kV.
- Degree of Protection: Front IP00.
- Terminal Type and Size: Lug terminals, 20 mm width, tightening torque 15–22 N·m.
- Mechanical Durability: 20,000 operations.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the voltage rating of the OTHV-series switch disconnector?
The OTHV-series switch disconnector is suitable for applications between 800 and 1000 V AC.
What are the current ratings for this switch disconnector?
The rated operational current is 160 A for AC-21A and AC-22A, and 135 A for AC-23A.
What type of terminals does the OTHV-series use?
It features lug terminals with a width of 20 mm and a tightening torque of 15–22 N·m.
What is the degree of protection for this switch disconnector?
The degree of protection is IP00 for the front of the device.
What is the mechanical durability of the OTHV-series switch disconnector?
The mechanical durability is rated for 20,000 operations.
Is the shaft and handle included with the switch disconnector?
No, the shaft and handle are not included with the OTHV-series switch disconnector.
What standards and approvals does this product conform to?
See the manufacturer's data sheet for standards and approvals.
| Alternative Product SKU | OTHV160E12W |
|---|---|
| Manufacturer Part Number | 1SCA162950R1001 |
| Manufacturer | ABB |
| Barcode | 6417019929026 |
| Number of Poles | 3 Pole |
| Number of switches | 1 |
| Rated operating voltage | 1000 |
| Device construction | Complete device in housing |
| Suitable for distribution board installation | Yes |
| Type of control element | Other |
| Colour control element | Black |
| Rated permanent current Iu | 200A |
| Voltage | 800-1000VAC |
| Degree of protection (IP) | IP00 |
| Degree of protection (NEMA) | Other |
| Type of electric connection | Bolt connection |
| Packed Quantity | 1 |
| Height | 170mm |
| Width | 174.5mm |
| Depth | 82.5mm |
| HS Code | 85365080 |
| Country of Manufacture | Finland |
