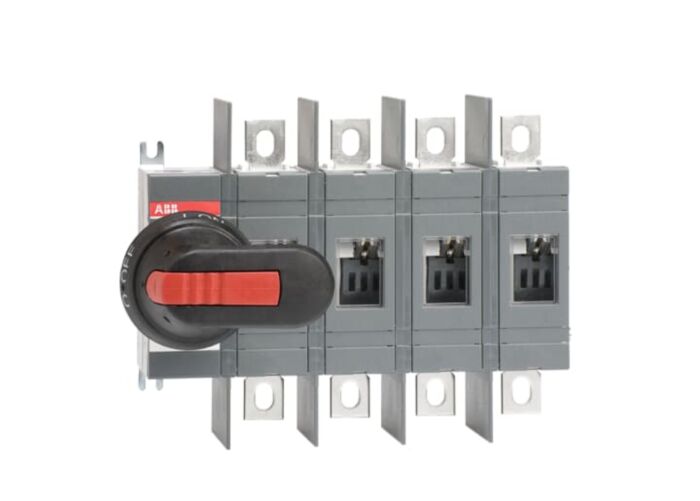

1SCA162949R1001 ABB OTHV160E04WP 4 Pole 800VAC to 1000VAC 200A Switch Disconnector
MPN: 1SCA162949R1001
Alt. SKU: OTHV160E04WP
Why Choose the OTHV160E04WP [1SCA162949R1001]
The OTHV-series 4-pole front-operated base-mounted switch disconnector is designed for use in 800 to 1000 VAC systems. It features a robust shaft and handle, included for straightforward installation and reliable operation. This switch disconnector ensures secure isolation and is suitable for a range of industrial and commercial electrical applications.
Technical Specification
- Function: 4-pole front operated base mounted switch disconnector.
- Rated Operational Voltage: 1000 V AC.
- Rated Operational Current (AC-23A): 135 A at 800 V and 1000 V AC.
- Conventional Thermal Current (Ithe): 200 A.
- Rated Impulse Withstand Voltage (Uimp): 12 kV.
- Degree of Protection: Front IP00.
- Terminal Type and Size: Lug terminals, 20 mm width.
- Mechanical Durability: 20,000 operations.
- Tightening Torque: 15–22 N·m (IEC 60947-1).
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated operational voltage of the OTHV-series switch disconnector?
The rated operational voltage is 1000 V AC.
What is the maximum rated operational current for this product?
The maximum rated operational current is 135 A at 800 V and 1000 V AC.
What type of terminals does the OTHV-series switch disconnector use?
It uses lug terminals with a width of 20 mm.
What is the degree of protection for this switch disconnector?
The degree of protection is IP00.
How many mechanical operations can the OTHV-series switch disconnector endure?
It has a mechanical durability of 20,000 operations.
What is the tightening torque range for the terminals?
The tightening torque range is 15–22 N·m as per IEC 60947-1.
What standards and approvals does the OTHV-series conform to?
See the manufacturer's data sheet for standards and approvals.
| Alternative Product SKU | OTHV160E04WP |
|---|---|
| Manufacturer Part Number | 1SCA162949R1001 |
| Manufacturer | ABB |
| Barcode | 6417019929019 |
| Number of Poles | 4 Pole |
| Max. rated operation voltage Ue AC | 1000V |
| Number of switches | 1 |
| Rated operating voltage | 1000 |
| Device construction | Complete device in housing |
| Suitable for distribution board installation | Yes |
| Type of control element | Other |
| Colour control element | Black |
| Rated permanent current Iu | 200A |
| Voltage | 800-1000VAC |
| Degree of protection (IP) | IP00 |
| Degree of protection (NEMA) | Other |
| Type of electric connection | Bolt connection |
| Packed Quantity | 1 |
| Height | 170mm |
| Width | 212.5mm |
| Depth | 82.5mm |
| HS Code | 85365080 |
| Country of Manufacture | Finland |
