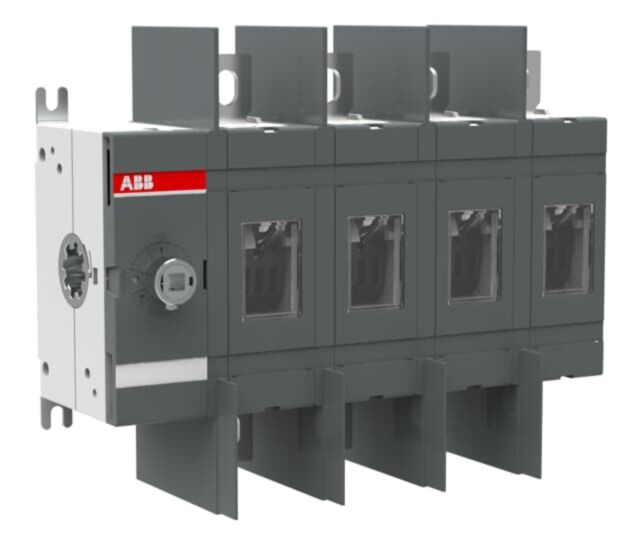

1SCA162948R1001 ABB OTHV160E04W 4 Pole 800VAC to 1000VAC 200A Switch Disconnector
MPN: 1SCA162948R1001
Alt. SKU: OTHV160E04W
Why Choose the OTHV160E04W [1SCA162948R1001]
The OTHV-series 4-pole front-operated base-mounted switch disconnector is designed for use in 800 to 1000 VAC electrical systems. This robust device provides reliable isolation and switching capabilities for industrial and commercial applications. Please note that the shaft and handle are supplied separately and must be ordered independently.
Technical Specification
- Function: 4-pole front operated base mounted switch disconnector (shaft and handle not included).
- Rated Operational Voltage: 800…1000 VAC.
- Rated Operational Current AC-21A/22A: 160 A at 800 V and 1000 V AC.
- Rated Operational Current AC-23A: 135 A at 800 V and 1000 V AC.
- Conventional Thermal Current (Ithe): 200 A.
- Rated Impulse Withstand Voltage (Uimp): 12 kV.
- Rated Insulation Voltage (Ui): 1000 V (IEC 60947-1).
- Degree of Protection: Front IP00.
- Terminal Type and Width: Lug terminals, 20 mm.
- Mechanical Durability: 20,000 operations.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated operational voltage for the OTHV-series switch disconnector?
The rated operational voltage is 800 to 1000 VAC.
What is the rated operational current for AC-21A/22A?
The rated operational current is 160 A at both 800 V and 1000 V AC.
What is the rated operational current for AC-23A?
The rated operational current is 135 A at both 800 V and 1000 V AC.
What type of terminals does the OTHV-series switch disconnector have?
It features lug terminals with a width of 20 mm.
What is the degree of protection for this switch disconnector?
The degree of protection is IP00.
How many mechanical operations can the switch disconnector endure?
The mechanical durability is rated for 20,000 operations.
What standards and approvals does the OTHV-series conform to?
See the manufacturer's data sheet for standards and approvals.
| Alternative Product SKU | OTHV160E04W |
|---|---|
| Manufacturer Part Number | 1SCA162948R1001 |
| Manufacturer | ABB |
| Barcode | 6417019929002 |
| Number of Poles | 4 Pole |
| Number of switches | 1 |
| Rated operating voltage | 1000 |
| Device construction | Complete device in housing |
| Suitable for distribution board installation | Yes |
| Type of control element | Other |
| Rated permanent current Iu | 200A |
| Voltage | 800-1000VAC |
| Degree of protection (IP) | IP00 |
| Degree of protection (NEMA) | Other |
| Type of electric connection | Bolt connection |
| Packed Quantity | 1 |
| Height | 170mm |
| Width | 212.5mm |
| Depth | 82.5mm |
| HS Code | 85365080 |
| Country of Manufacture | Finland |
