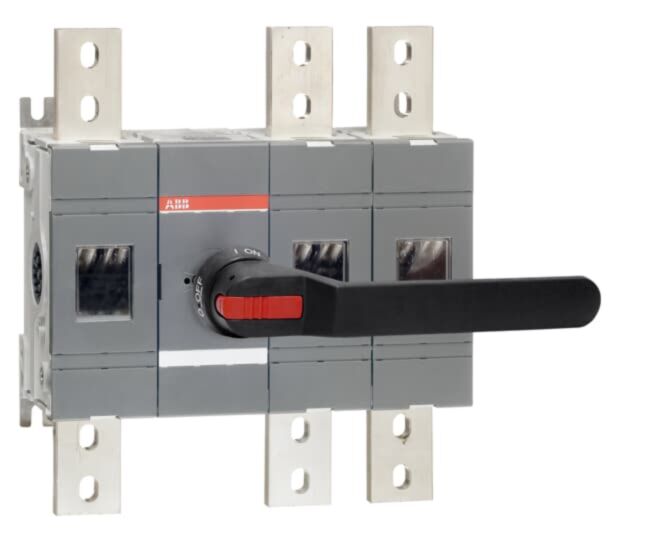

1SCA162935R1001 ABB OTHV1250E12P 3 Pole 800VAC to 1000VAC 1600A Switch Disconnector
MPN: 1SCA162935R1001
Alt. SKU: OTHV1250E12P
Why Choose the OTHV1250E12P [1SCA162935R1001]
The OTHV-series 3-pole front-operated base-mounted switch disconnector is designed for use in 800 to 1000 VAC systems. It features a robust shaft and handle, included for straightforward installation and reliable operation. This switch disconnector ensures secure isolation and is suitable for industrial and commercial electrical distribution applications.
Technical Specification
- Function: 3-pole front operated base mounted switch disconnector.
- Rated Operational Voltage: 800…1000 V AC.
- Rated Operational Current (AC-23A): 800 A at 800 V AC.
- Conventional Thermal Current (Ithe): 1600 A.
- Impulse Withstand Voltage (Uimp): 12 kV.
- Rated Insulation Voltage (Ui): 1000 V (IEC 60947-1).
- Degree of Protection: Front IP00.
- Terminal Type and Size: Lug terminals, 50 mm width.
- Mechanical Durability: 6000 operations.
- Handle: Black pistol type handle included, 274 mm length.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated operational voltage of the OTHV-series switch disconnector?
The rated operational voltage is 800 to 1000 V AC.
What is the maximum rated operational current for this switch disconnector?
The maximum rated operational current is 800 A at 800 V AC.
What type of terminals does the OTHV-series switch disconnector use?
It uses lug terminals with a width of 50 mm.
What is the degree of protection for this product?
The degree of protection is IP00.
How many mechanical operations can the switch disconnector endure?
The mechanical durability is rated for 6000 operations.
Is the handle included with the switch disconnector?
Yes, a black pistol type handle, 274 mm in length, is included.
What standards and approvals does this product conform to?
See the manufacturer's data sheet for standards and approvals.
| Alternative Product SKU | OTHV1250E12P |
|---|---|
| Manufacturer Part Number | 1SCA162935R1001 |
| Manufacturer | ABB |
| Barcode | 6417019928876 |
| Number of Poles | 3 Pole |
| Number of switches | 1 |
| Rated operating voltage | 1000V |
| Device construction | Complete device in housing |
| Suitable for distribution board installation | Yes |
| Type of control element | Other |
| Colour control element | Black |
| Rated permanent current Iu | 1600A |
| Voltage | 800-1000VAC |
| Degree of protection (IP) | IP00 |
| Degree of protection (NEMA) | Other |
| Type of electric connection | Bolt connection |
| Packed Quantity | 1 |
| Height | 372mm |
| Width | 334.5mm |
| Depth | 167mm |
| HS Code | 85365080 |
| Country of Manufacture | Finland |
