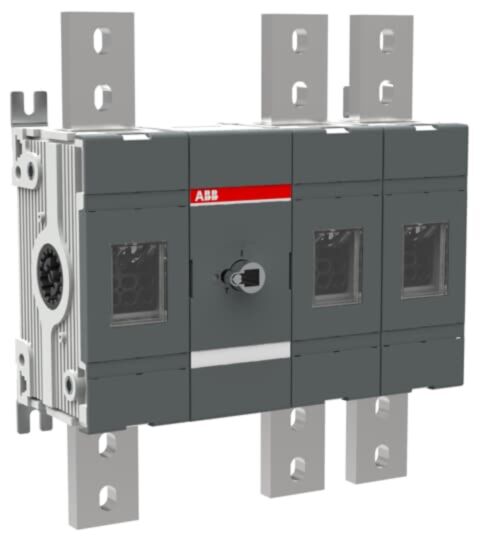

1SCA162934R1001 ABB OTHV1250E12 3 Pole 800VAC to 1000VAC 1600A Switch Disconnector
MPN: 1SCA162934R1001
Alt. SKU: OTHV1250E12
Why Choose the OTHV1250E12 [1SCA162934R1001]
The OTHV-series is a 3-pole, front-operated base-mounted switch disconnector designed for use in 800 to 1000 VAC electrical systems. This robust device ensures reliable isolation and switching within high-voltage applications. Please note that the shaft and handle are supplied separately and must be ordered in addition to the switch disconnector.
Technical Specification
- Function: 3-pole front operated base mounted switch disconnector.
- Rated Operational Voltage: Up to 1000 V AC.
- Rated Operational Current: 1250 A (AC-21A, AC-22A at 800 V and 1000 V).
- Contact Configuration: 3 poles.
- Rated Insulation Voltage: 1000 V (IEC 60947-1).
- Rated Impulse Withstand Voltage: 12 kV.
- Degree of Protection: Front IP00.
- Terminal Type and Size: Lug terminals, 50 mm width.
- Mechanical Durability: 6000 operations.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the maximum operational voltage for the OTHV-series switch disconnector?
The maximum operational voltage for the OTHV-series switch disconnector is up to 1000 V AC.
What is the rated operational current of this switch disconnector?
The rated operational current is 1250 A for AC-21A and AC-22A at 800 V and 1000 V.
What is the contact configuration of the OTHV-series switch disconnector?
The contact configuration is 3 poles.
What is the degree of protection for this product?
The degree of protection is Front IP00.
What type of terminals does the OTHV-series switch disconnector use?
It uses lug terminals with a width of 50 mm.
How many mechanical operations can the switch disconnector endure?
The mechanical durability is rated for 6000 operations.
What standards and approvals does this product conform to?
See the manufacturer's data sheet for standards and approvals.
| Alternative Product SKU | OTHV1250E12 |
|---|---|
| Manufacturer Part Number | 1SCA162934R1001 |
| Manufacturer | ABB |
| Barcode | 6417019928869 |
| Number of Poles | 3 Pole |
| Number of switches | 1 |
| Rated operating voltage | 1000V |
| Device construction | Complete device in housing |
| Suitable for distribution board installation | Yes |
| Type of control element | Other |
| Rated permanent current Iu | 1600A |
| Voltage | 800-1000VAC |
| Degree of protection (IP) | IP00 |
| Degree of protection (NEMA) | Other |
| Type of electric connection | Bolt connection |
| Packed Quantity | 1 |
| Height | 372mm |
| Width | 334.5mm |
| Depth | 167mm |
| HS Code | 85365080 |
| Country of Manufacture | Finland |
