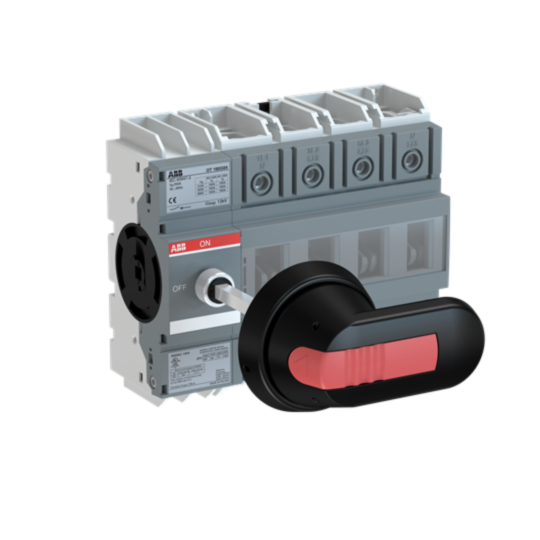

1SCA162929R1001 ABB OTHV100G04P 4 Pole 800VAC to 1000VAC 100A Switch Disconnector
MPN: 1SCA162929R1001
Alt. SKU: OTHV100G04P
Why Choose the OTHV100G04P [1SCA162929R1001]
The OTHV-series 4-pole front-operated base-mounted switch disconnector is designed for use in 800 to 1000VAC systems. It features a robust shaft and handle, both included, ensuring reliable operation and ease of installation in industrial and commercial electrical installations.
Technical Specification
- Function: 4-pole front operated base mounted switch disconnector.
- Rated Operational Voltage: 1000 V AC.
- Rated Operational Current: 100 A (AC-21A and AC-22A at 800…1000 V AC).
- Contact Configuration: 4 poles with switched fourth pole (simultaneous function).
- Rated Insulation Voltage: 1000 V (IEC 60947-1).
- Rated Impulse Withstand Voltage: 12 kV.
- Degree of Protection: Front IP20.
- Terminal Type and Range: Screw terminals, Cu 10...70 mm².
- Mechanical Durability: 20,000 operations.
- Rated Short-Circuit Making Capacity: 12 kA at 1000 V.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated operational voltage of the OTHV-series switch disconnector?
The rated operational voltage is 1000 V AC.
What is the maximum rated operational current for this switch disconnector?
The maximum rated operational current is 100 A (AC-21A and AC-22A).
What is the contact configuration of the OTHV-series switch disconnector?
The contact configuration consists of 4 poles with a switched fourth pole for simultaneous function.
What is the degree of protection for this product?
The degree of protection is IP20 for the front.
What is the terminal type and range for cable connections?
The terminal type is screw terminals, with a cable range of 10...70 mm² for copper conductors.
How many operations can the switch disconnector withstand mechanically?
The mechanical durability is rated for 20,000 operations.
What is the rated short-circuit making capacity?
The rated short-circuit making capacity is 12 kA at 1000 V.
| Alternative Product SKU | OTHV100G04P |
|---|---|
| Manufacturer Part Number | 1SCA162929R1001 |
| Manufacturer | ABB |
| Barcode | 6417019928814 |
| Number of Poles | 4 Pole |
| Max. rated operation voltage Ue AC | 1000V |
| Number of switches | 1 |
| Rated operating voltage | 1000V |
| Device construction | Complete device in housing |
| Suitable for distribution board installation | Yes |
| Type of control element | Other |
| Colour control element | Black |
| Rated permanent current Iu | 100A |
| Voltage | 800-1000VAC |
| Degree of protection (IP) | IP20 |
| Degree of protection (NEMA) | Other |
| Type of electric connection | Screw connection |
| Packed Quantity | 1 |
| Height | 130mm |
| Width | 150mm |
| Depth | 73mm |
| HS Code | 85365080 |
| Country of Manufacture | Finland |
