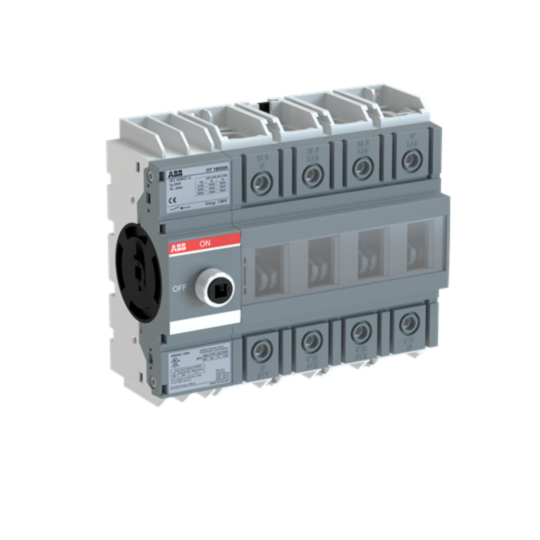

1SCA162928R1001 ABB OTHV100G04 4 Pole 800VAC to 1000VAC 100A Switch Disconnector
MPN: 1SCA162928R1001
Alt. SKU: OTHV100G04
Why Choose the OTHV100G04 [1SCA162928R1001]
The OTHV-series 4-pole front-operated base-mounted switch disconnector is designed for use in 800 to 1000 VAC electrical systems. It provides reliable isolation and switching capabilities for industrial and commercial installations. Please note that the shaft and handle are supplied separately and must be ordered in addition to the switch disconnector.
Technical Specification
- Function: 4-pole front operated base mounted switch disconnector.
- Voltage Rating: 800…1000 VAC operational voltage.
- Current Rating: 100 A conventional thermal current (Ith, Ithe) and operational current (AC-21A, AC-22A).
- Contact Configuration: 4 poles with simultaneous switching on the fourth pole.
- Insulation Voltage: Rated insulation voltage 1000 V (IEC 60947-1).
- Impulse Withstand Voltage: 12 kV.
- Degree of Protection: Front IP20.
- Terminal Type and Size: Screw terminals, Cu 10...70 mm², tightening torque 6 N·m.
- Mechanical Durability: 20,000 operations.
- Standards: IEC 60947-3 compliant.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the voltage rating of the OTHV-series switch disconnector?
The OTHV-series switch disconnector has a voltage rating of 800 to 1000 VAC.
What is the current rating for the OTHV-series switch disconnector?
The current rating is 100 A for both conventional thermal current and operational current (AC-21A, AC-22A).
What is the degree of protection for this switch disconnector?
The degree of protection is IP20 for the front of the device.
What type of terminals does the OTHV-series switch disconnector have?
It features screw terminals suitable for copper conductors sized 10 to 70 mm².
How many mechanical operations can the OTHV-series switch disconnector endure?
The switch disconnector is rated for 20,000 mechanical operations.
Is the OTHV-series switch disconnector compliant with any standards?
Yes, it is compliant with IEC 60947-3 standards.
What should I refer to for conformity information?
See the manufacturer's data sheet for standards and approvals.
| Alternative Product SKU | OTHV100G04 |
|---|---|
| Manufacturer Part Number | 1SCA162928R1001 |
| Manufacturer | ABB |
| Barcode | 6417019928807 |
| Number of Poles | 4 Pole |
| Number of switches | 1 |
| Rated operating voltage | 1000V |
| Device construction | Complete device in housing |
| Suitable for distribution board installation | Yes |
| Type of control element | Other |
| Rated permanent current Iu | 100A |
| Voltage | 800-1000VAC |
| Degree of protection (IP) | IP20 |
| Degree of protection (NEMA) | Other |
| Type of electric connection | Screw connection |
| Packed Quantity | 1 |
| Height | 130mm |
| Width | 150mm |
| Depth | 73mm |
| HS Code | 85365080 |
| Country of Manufacture | Finland |
