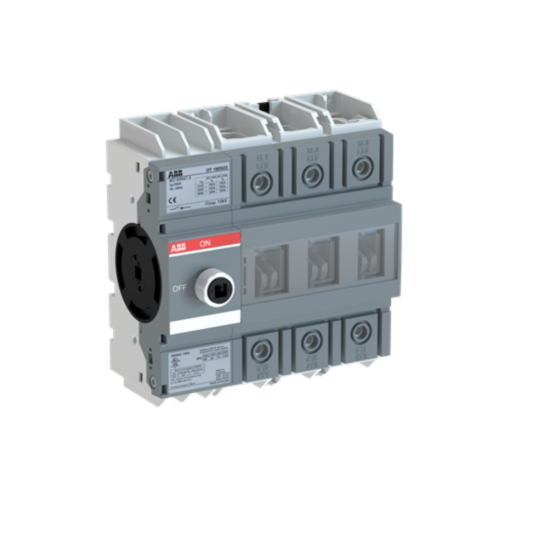

1SCA162926R1001 ABB OTHV100G03 3 Pole 800VAC to 1000VAC 100A Switch Disconnector
MPN: 1SCA162926R1001
Alt. SKU: OTHV100G03
Why Choose the OTHV100G03 [1SCA162926R1001]
The OTHV-series is a 3-pole, front-operated switch disconnector designed for base mounting in 800 to 1000VAC systems. It provides reliable isolation and switching functionality for industrial and commercial electrical installations. Please note that the shaft and handle are supplied separately.
Technical Specification
- Function: 3-pole front operated base mounted switch disconnector.
- Rated Operational Voltage: 800…1000 VAC.
- Rated Operational Current (AC-21A/AC-22A): 100 A.
- Contact Configuration: 3 poles (3P).
- Rated Insulation Voltage (Uᵢ): 1000 V (IEC 60947-1).
- Rated Impulse Withstand Voltage (Uᵢₘₚ): 12 kV.
- Degree of Protection: Front IP20.
- Terminal Type and Cable Range: Screw terminals, Cu 10…70 mm².
- Mechanical Durability: 20,000 operations.
- Short-Circuit Making Capacity: 12 kA (1000 V).
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated operational voltage of the OTHV-series switch disconnector?
The rated operational voltage is 800 to 1000 VAC.
What is the rated operational current for this switch disconnector?
The rated operational current is 100 A (AC-21A/AC-22A).
What is the degree of protection for the OTHV-series switch disconnector?
The degree of protection is IP20.
What is the cable range for the terminal type?
The terminal type is screw terminals with a cable range of 10 to 70 mm² for copper (Cu) conductors.
How many mechanical operations can the switch disconnector endure?
The mechanical durability is rated for 20,000 operations.
What is the short-circuit making capacity of this switch disconnector?
The short-circuit making capacity is 12 kA at 1000 V.
Are there any specific standards or approvals for this product?
See the manufacturer's data sheet for standards and approvals.
| Alternative Product SKU | OTHV100G03 |
|---|---|
| Manufacturer Part Number | 1SCA162926R1001 |
| Manufacturer | ABB |
| Barcode | 6417019928685 |
| Number of Poles | 3 Pole |
| Number of switches | 1 |
| Rated operating voltage | 1000V |
| Device construction | Complete device in housing |
| Suitable for distribution board installation | Yes |
| Type of control element | Other |
| Rated permanent current Iu | 100A |
| Voltage | 800-1000VAC |
| Degree of protection (IP) | IP20 |
| Degree of protection (NEMA) | Other |
| Type of electric connection | Screw connection |
| Packed Quantity | 1 |
| Height | 130mm |
| Width | 123mm |
| Depth | 73mm |
| HS Code | 85365080 |
| Country of Manufacture | Finland |
