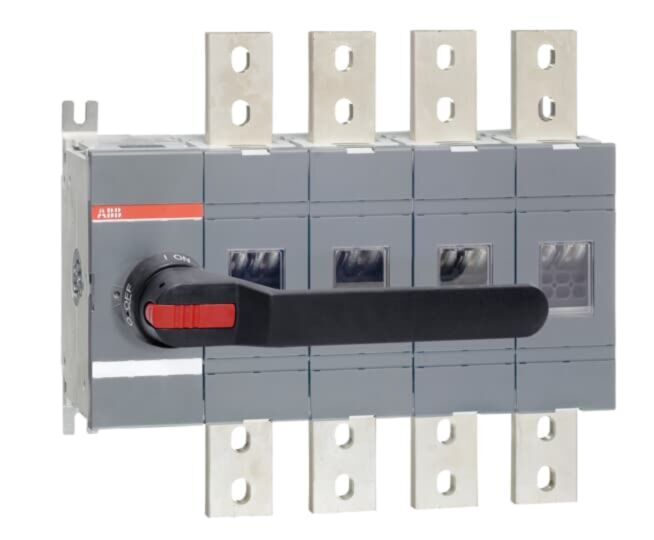

1SCA162923R1001 ABB OTHV1000E04P 4 Pole 800VAC to 1000VAC 1600A Switch Disconnector
MPN: 1SCA162923R1001
Alt. SKU: OTHV1000E04P
Why Choose the OTHV1000E04P [1SCA162923R1001]
The OTHV-series 4-pole front-operated base-mounted switch disconnector is designed for use in 800 to 1000 VAC systems. It features a robust shaft and handle, both included, ensuring reliable operation and ease of installation in industrial and commercial electrical installations.
Technical Specification
- Function: 4-pole front operated base mounted switch disconnector.
- Rated Operational Voltage: 1000 V AC.
- Rated Operational Current: 1000 A (AC-21A, AC-22A at 800 V and 1000 V AC); 800 A (AC-23A at 800 V AC).
- Conventional Thermal Current (Ith): 1600 A.
- Rated Impulse Withstand Voltage (Uimp): 12 kV.
- Degree of Protection: Front IP00.
- Terminal Type: Lug terminals, 50 mm wide.
- Mechanical Durability: 6000 operations.
- Rated Short-Circuit Making Capacity (Icm): 92 kA at 1000 V.
- Rated Short-time Withstand Current (Icw): 50 kA for 1 second.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated operational voltage of the OTHV-series switch disconnector?
The rated operational voltage is 1000 V AC.
What is the maximum rated operational current for this product?
The maximum rated operational current is 1000 A (AC-21A, AC-22A at 800 V and 1000 V AC).
What type of terminals does the OTHV-series switch disconnector use?
It uses lug terminals that are 50 mm wide.
What is the degree of protection for this switch disconnector?
The degree of protection is IP00.
How many operations can the OTHV-series switch disconnector endure mechanically?
It has a mechanical durability of 6000 operations.
What is the rated short-circuit making capacity of this product?
The rated short-circuit making capacity is 92 kA at 1000 V.
Is there any conformity information available for this product?
See the manufacturer's data sheet for standards and approvals.
| Alternative Product SKU | OTHV1000E04P |
|---|---|
| Manufacturer Part Number | 1SCA162923R1001 |
| Manufacturer | ABB |
| Barcode | 6417019928654 |
| Number of Poles | 4 Pole |
| Max. rated operation voltage Ue AC | 1000V |
| Number of switches | 1 |
| Rated operating voltage | 1000 |
| Device construction | Complete device in housing |
| Suitable for distribution board installation | Yes |
| Type of control element | Other |
| Colour control element | Black |
| Rated permanent current Iu | 1600A |
| Voltage | 800-1000VAC |
| Degree of protection (IP) | IP00 |
| Degree of protection (NEMA) | Other |
| Type of electric connection | Bolt connection |
| Packed Quantity | 1 |
| Height | 372mm |
| Width | 414.5mm |
| Depth | 167mm |
| HS Code | 85365080 |
| Country of Manufacture | Finland |
