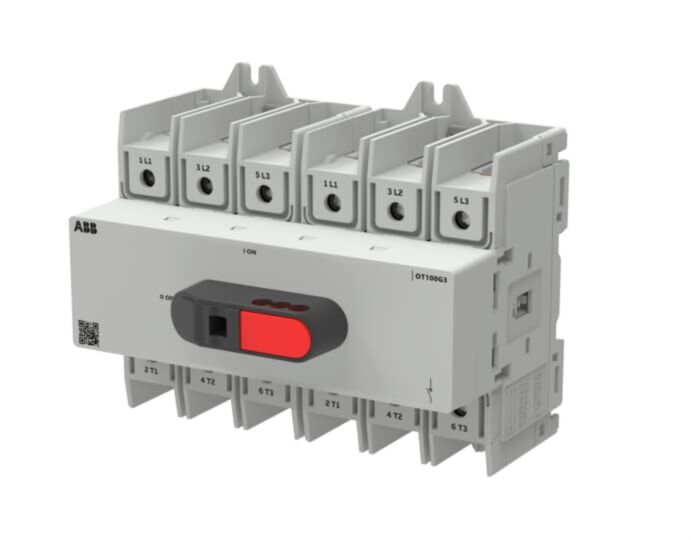

1SCA162667R1001 ABB OT100G3-6BS OT Plus 6 Pole 100A Panel Mounted Switch Disconnector
MPN: 1SCA162667R1001
Alt. SKU: OT100G3-6BS
Special Price
£207.16
£172.63
Regular Price
£318.70
Why Choose the 1SCA162667R1001
The ABB 1SCA162667R1001 is a 6 pole OT Plus switch disconnector rated for 100 A and up to 800 V, suitable for main and service switch applications.
With a 50 kA conditioned rated short-circuit current and 2.5 kA short-time withstand capability, this device is designed for secure disconnection in demanding installation environments.
Technical Specification
- Manufacturer: ABB
- SKU: 1SCA162667R1001
- Manufacturer part number: 1SCA162667R1001
- Range: OT Plus
- Product category: Isolators and Disconnectors
- Product sub category: Switch Disconnector
- Poles: 6 Pole
- Pack quantity: 1
- Country of manufacture: Finland
- HS code: 85365080
- Conditioned rated short-circuit current Iq: 50 kA
- Rated permanent current Iu: 100 A
- Rated short-time withstand current lcw: 2.5 kA
- Max. rated operation voltage Ue AC: 800 VAC
- Rated operating voltage: 800 V
- Suitable for distribution board installation: Yes
- Version as main switch: Yes
- Version as maintenance-/service switch: Yes
- Number of switches: Yes
Downloads
- Datasheet for 1SCA162667R1001
- Enviromental product declaration for 1SCA162667R1001
- EU Declaration of Conformity for 1SCA162667R1001
- REACh declaration for 1SCA162667R1001
Trusted By Customers Worldwide
"Rated for use as both a main and service switch, providing flexibility in distribution board designs." Engineering note
Frequently Asked Questions
Is this switch disconnector suitable for installation in distribution boards?
Yes, it is suitable for distribution board installation.
What is the maximum operating voltage for the 1SCA162667R1001?
The maximum rated operating voltage is 800 V AC.
Can the 1SCA162667R1001 be used as a main switch?
Yes, it is designed for use as a main switch.
| Alternative Product SKU | OT100G3-6BS |
|---|---|
| Manufacturer Part Number | 1SCA162667R1001 |
| Manufacturer | ABB |
| Barcode | 6417019926520 |
| Number of Poles | 6 pole |
| Conditioned rated short-circuit current Iq | 50kA |
| Max. rated operation voltage Ue AC | 800VAC |
| Number of switches | 1 |
| Rated operating voltage | 800 |
| Version as main switch | Yes |
| Version as maintenance-/service switch | Yes |
| Suitable for distribution board installation | Yes |
| Rated permanent current Iu | 100A |
| Amperage | 100A |
| Range | OT Plus |
| Packed Quantity | 1 |
| Height | 140mm |
| Width | 123mm |
| Depth | 95mm |
| HS Code | 85365080 |
| Country of Manufacture | Finland |
