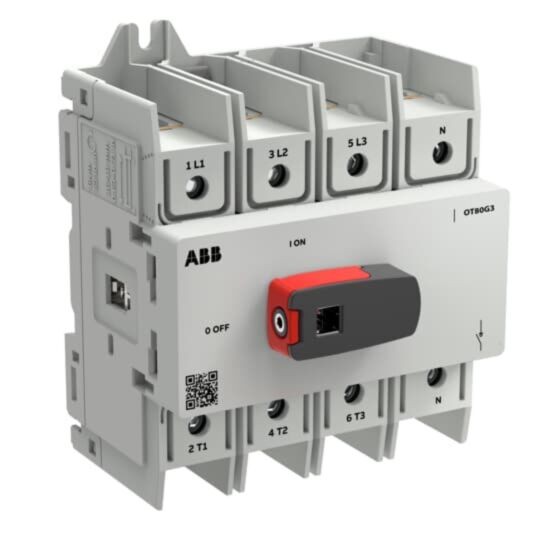

1SCA162572R1001 ABB OT80G3-4BSN2 OT Plus 4 Pole 80A Panel Mounted Switch Disconnector
MPN: 1SCA162572R1001
Alt. SKU: OT80G3-4BSN2
Special Price
£74.45
£62.04
Regular Price
£114.53
Why Choose the 1SCA162572R1001
The ABB 1SCA162572R1001 is a 4 pole switch disconnector from the OT Plus range, designed for use at up to 800 V and rated for 80 A permanent current.
Suitable for demanding isolation requirements, it offers a 50 kA short-circuit rating and a 2.5 kA short-time withstand capability.
Technical Specification
- Manufacturer: ABB
- SKU: 1SCA162572R1001
- Manufacturer part number: 1SCA162572R1001
- Range: OT Plus
- Product category: Isolators and Disconnectors
- Product sub category: Switch Disconnector
- Poles: 4 Pole
- Pack quantity: 1
- Country of manufacture: Finland
- HS code: 85365080
- Conditioned rated short-circuit current Iq: 50 kA
- Rated permanent current Iu: 80 A
- Rated permanent current at AC-21, 400 V: 80 A
- Rated permanent current at AC-23, 400 V: 80 A
- Rated short-time withstand current lcw: 2.5 kA
- Max. rated operation voltage Ue AC: 800 VAC
- Rated operating voltage: 800 V
- Switching power at 400 V: 45 kW
- Number of switches: Yes
- Rated operation power at AC-23, 400 V: 45 kW
Downloads
- Datasheet for 1SCA162572R1001
- Installation instructions for 1SCA162572R1001
- Enviromental product declaration for 1SCA162572R1001
- EU Declaration of Conformity for 1SCA162572R1001
- REACh declaration for 1SCA162572R1001
Trusted By Customers Worldwide
"Installation provides secure isolation for circuits operating up to 800 V AC with 80 A loads." Engineering note
Frequently Asked Questions
What is the rated operating voltage for the ABB 1SCA162572R1001 switch disconnector?
The rated operating voltage is up to 800 V AC.
How many poles does the OT80G3-4BSN2 feature?
This model features 4 poles.
What is the short-circuit rating of this device?
The conditioned rated short-circuit current is 50 kA.
What is the rated permanent current at 400 V AC?
The rated permanent current at AC-23 and AC-21, 400 V is 80 A.
| Alternative Product SKU | OT80G3-4BSN2 |
|---|---|
| Manufacturer Part Number | 1SCA162572R1001 |
| Manufacturer | ABB |
| Barcode | 6417019926070 |
| Number of Poles | 4 pole |
| Conditioned rated short-circuit current Iq | 50kA |
| Rated operation power at AC-23, 400 V | 45kW |
| Rated permanent current at AC-21, 400 V | 80A |
| Switching power at 400 V | 45kW |
| Rated permanent current at AC-23, 400 V | 80A |
| Max. rated operation voltage Ue AC | 800VAC |
| Number of switches | 1 |
| Rated operating voltage | 800 |
| Rated permanent current Iu | 80A |
| Amperage | 80A |
| Range | OT Plus |
| Packed Quantity | 1 |
| Height | 123mm |
| Width | 95.5mm |
| Depth | 74.6mm |
| HS Code | 85365080 |
| Country of Manufacture | Finland |
