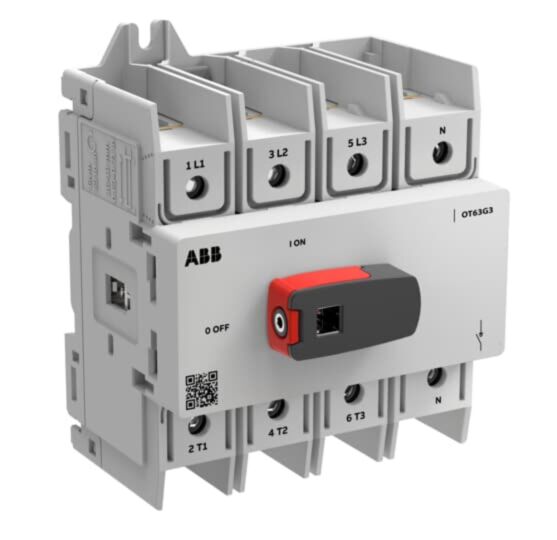

1SCA162571R1001 ABB OT63G3-4BSN2 OT Plus 4 Pole 63A Panel Mounted Switch Disconnector
MPN: 1SCA162571R1001
Alt. SKU: OT63G3-4BSN2
Special Price
£70.30
£58.58
Regular Price
£108.16
Why Choose the 1SCA162571R1001
The ABB 1SCA162571R1001 is a 4 pole OT Plus switch disconnector designed for use up to 800 V, with a rated current of 63 A.
Suitable for demanding switching applications, it provides a short-circuit current rating of 50 kA and a short-time withstand capability of 2.5 kA.
Technical Specification
- Manufacturer: ABB
- SKU: 1SCA162571R1001
- Manufacturer part number: 1SCA162571R1001
- Range: OT Plus
- Product category: Isolators and Disconnectors
- Product sub category: Switch Disconnector
- Poles: 4 Pole
- Pack quantity: 1
- Country of manufacture: Finland
- HS code: 85365080
- Conditioned rated short-circuit current Iq: 50 kA
- Rated permanent current Iu: 63 A
- Rated permanent current at AC-21, 400 V: 63 A
- Rated permanent current at AC-23, 400 V: 63 A
- Rated short-time withstand current lcw: 2.5 kA
- Max. rated operation voltage Ue AC: 800 VAC
- Rated operating voltage: 800 V
- Switching power at 400 V: 30 kW
- Number of switches: Yes
- Rated operation power at AC-23, 400 V: 30 kW
Downloads
- Datasheet for 1SCA162571R1001
- Installation instructions for 1SCA162571R1001
- Enviromental product declaration for 1SCA162571R1001
- EU Declaration of Conformity for 1SCA162571R1001
- REACh declaration for 1SCA162571R1001
Trusted By Customers Worldwide
"Switching capacity at 400 V is rated at 30 kW for this device." Engineering note
Frequently Asked Questions
What is the rated permanent current of the 1SCA162571R1001?
The rated permanent current is 63 A.
How many poles does this switch disconnector have?
It has 4 poles.
What is the maximum operating voltage for this device?
The maximum rated operating voltage is 800 V AC.
| Alternative Product SKU | OT63G3-4BSN2 |
|---|---|
| Manufacturer Part Number | 1SCA162571R1001 |
| Manufacturer | ABB |
| Barcode | 6417019926063 |
| Number of Poles | 4 pole |
| Conditioned rated short-circuit current Iq | 50kA |
| Rated operation power at AC-23, 400 V | 30kW |
| Rated permanent current at AC-21, 400 V | 63A |
| Switching power at 400 V | 30kW |
| Rated permanent current at AC-23, 400 V | 63A |
| Max. rated operation voltage Ue AC | 800VAC |
| Number of switches | 1 |
| Rated operating voltage | 800 |
| Rated permanent current Iu | 63A |
| Amperage | 63A |
| Range | OT Plus |
| Packed Quantity | 1 |
| Height | 123mm |
| Width | 95.5mm |
| Depth | 74.6mm |
| HS Code | 85365080 |
| Country of Manufacture | Finland |
