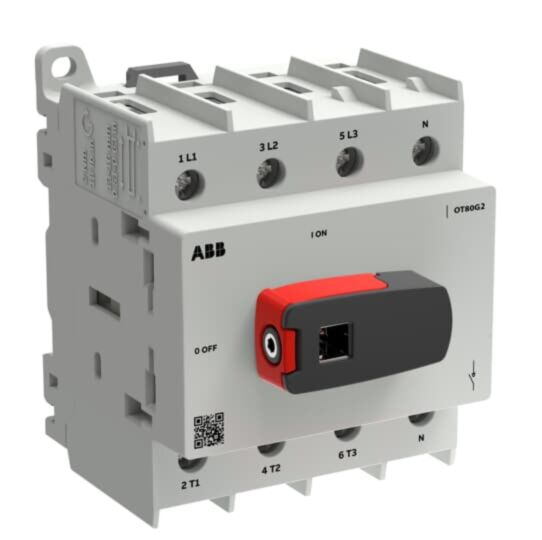

1SCA162561R1001 ABB OT80G2-4BSN2 OT Plus 4 Pole 80A Panel Mounted Switch Disconnector
MPN: 1SCA162561R1001
Alt. SKU: OT80G2-4BSN2
Special Price
£46.68
£38.90
Regular Price
£71.82
Why Choose the 1SCA162561R1001
The ABB 1SCA162561R1001 is a 4 pole switch disconnector from the OT Plus range, rated for 80 A and suitable for operation up to 800 V. Designed for isolating and switching applications, it features a 50 kA short-circuit rating for robust circuit protection.
Technical Specification
- Manufacturer: ABB
- SKU: 1SCA162561R1001
- Manufacturer part number: 1SCA162561R1001
- Range: OT Plus
- Product category: Isolators and Disconnectors
- Product sub category: Switch Disconnector
- Poles: 4 Pole
- Pack quantity: 1
- Country of manufacture: Finland
- HS code: 85365080
- Conditioned rated short-circuit current Iq: 50 kA
- Rated permanent current Iu: 80 A
- Rated permanent current at AC-21, 400 V: 80 A
- Rated permanent current at AC-23, 400 V: 80 A
- Rated short-time withstand current lcw: 1.5 kA
- Max. rated operation voltage Ue AC: 800 VAC
- Rated operating voltage: 800 V
- Switching power at 400 V: 45 kW
- Number of switches: Yes
- Rated operation power at AC-23, 400 V: 45 kW
Downloads
- Datasheet for 1SCA162561R1001
- Installation instructions for 1SCA162561R1001
- Enviromental product declaration for 1SCA162561R1001
- EU Declaration of Conformity for 1SCA162561R1001
- REACh declaration for 1SCA162561R1001
Trusted By Customers Worldwide
"Unit supports reliable disconnection under high fault current conditions." Engineering note
Frequently Asked Questions
What is the rated current of the ABB 1SCA162561R1001 switch disconnector?
The rated permanent current is 80 A.
How many poles does this switch disconnector have?
This unit is a 4 pole device.
What is the maximum operating voltage for this product?
The maximum rated operating voltage is 800 V AC.
What short-circuit rating does the device provide?
It offers a conditioned short-circuit current rating of 50 kA.
| Alternative Product SKU | OT80G2-4BSN2 |
|---|---|
| Manufacturer Part Number | 1SCA162561R1001 |
| Manufacturer | ABB |
| Barcode | 6417019925967 |
| Number of Poles | 4 pole |
| Conditioned rated short-circuit current Iq | 50kA |
| Rated operation power at AC-23, 400 V | 45kW |
| Rated permanent current at AC-21, 400 V | 80A |
| Switching power at 400 V | 45kW |
| Rated permanent current at AC-23, 400 V | 80A |
| Max. rated operation voltage Ue AC | 800VAC |
| Number of switches | 1 |
| Rated operating voltage | 800 |
| Rated permanent current Iu | 80A |
| Amperage | 80A |
| Range | OT Plus |
| Packed Quantity | 1 |
| Height | 91.5mm |
| Width | 70mm |
| Depth | 73mm |
| HS Code | 85365080 |
| Country of Manufacture | Finland |
