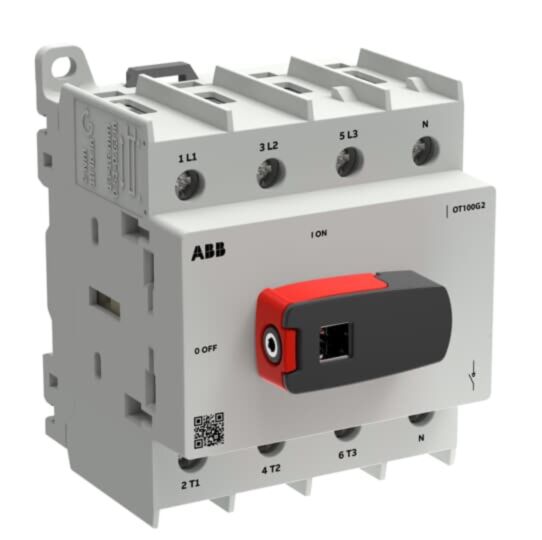

1SCA162557R1001 ABB OT100G2-4BSN2 OT Plus 4 Pole 100A Panel Mounted Switch Disconnector
MPN: 1SCA162557R1001
Alt. SKU: OT100G2-4BSN2
Special Price
£64.57
£53.81
Regular Price
£99.34
Why Choose the 1SCA162557R1001
The ABB 1SCA162557R1001 is a 4 pole switch disconnector from the OT Plus range, designed for operation up to 800 V and a rated current of 100 A.
Capable of withstanding short-circuit currents up to 50 kA and providing 1.5 kA short-time withstand, this unit ensures reliable isolation and disconnection in demanding industrial environments.
Technical Specification
- Manufacturer: ABB
- SKU: 1SCA162557R1001
- Manufacturer part number: 1SCA162557R1001
- Range: OT Plus
- Product category: Isolators and Disconnectors
- Product sub category: Switch Disconnector
- Poles: 4 Pole
- Pack quantity: 1
- Country of manufacture: Finland
- HS code: 85365080
- Conditioned rated short-circuit current Iq: 50 kA
- Rated permanent current Iu: 100 A
- Rated permanent current at AC-21, 400 V: 100 A
- Rated permanent current at AC-23, 400 V: 80 A
- Rated short-time withstand current lcw: 1.5 kA
- Max. rated operation voltage Ue AC: 800 VAC
- Rated operating voltage: 800 V
- Switching power at 400 V: 45 kW
- Number of switches: Yes
- Rated operation power at AC-23, 400 V: 45 kW
Downloads
- Datasheet for 1SCA162557R1001
- Installation instructions for 1SCA162557R1001
- Enviromental product declaration for 1SCA162557R1001
- EU Declaration of Conformity for 1SCA162557R1001
- REACh declaration for 1SCA162557R1001
Trusted By Customers Worldwide
"Switch suitable for applications requiring up to 100 A at 800 VAC with a short-circuit rating of 50 kA." Engineering note
Frequently Asked Questions
What is the rated operating voltage of the ABB 1SCA162557R1001 switch disconnector?
The rated operating voltage is up to 800 V.
How many poles does this disconnector have?
It is a 4 pole switch disconnector.
What is the maximum short-circuit current the device can handle?
The conditioned rated short-circuit current is 50 kA.
What current can the switch carry permanently at AC-21, 400 V?
It can carry 100 A permanently at AC-21, 400 V.
Which product range does this switch disconnector belong to?
It belongs to the ABB OT Plus range.
| Alternative Product SKU | OT100G2-4BSN2 |
|---|---|
| Manufacturer Part Number | 1SCA162557R1001 |
| Manufacturer | ABB |
| Barcode | 6417019925929 |
| Number of Poles | 4 pole |
| Conditioned rated short-circuit current Iq | 50kA |
| Rated operation power at AC-23, 400 V | 45kW |
| Rated permanent current at AC-21, 400 V | 100A |
| Switching power at 400 V | 45kW |
| Rated permanent current at AC-23, 400 V | 80A |
| Max. rated operation voltage Ue AC | 800VAC |
| Number of switches | 1 |
| Rated operating voltage | 800 |
| Rated permanent current Iu | 100A |
| Amperage | 100A |
| Range | OT Plus |
| Packed Quantity | 1 |
| Height | 91.5mm |
| Width | 70mm |
| Depth | 73mm |
| HS Code | 85365080 |
| Country of Manufacture | Finland |
